- Telescopic link type

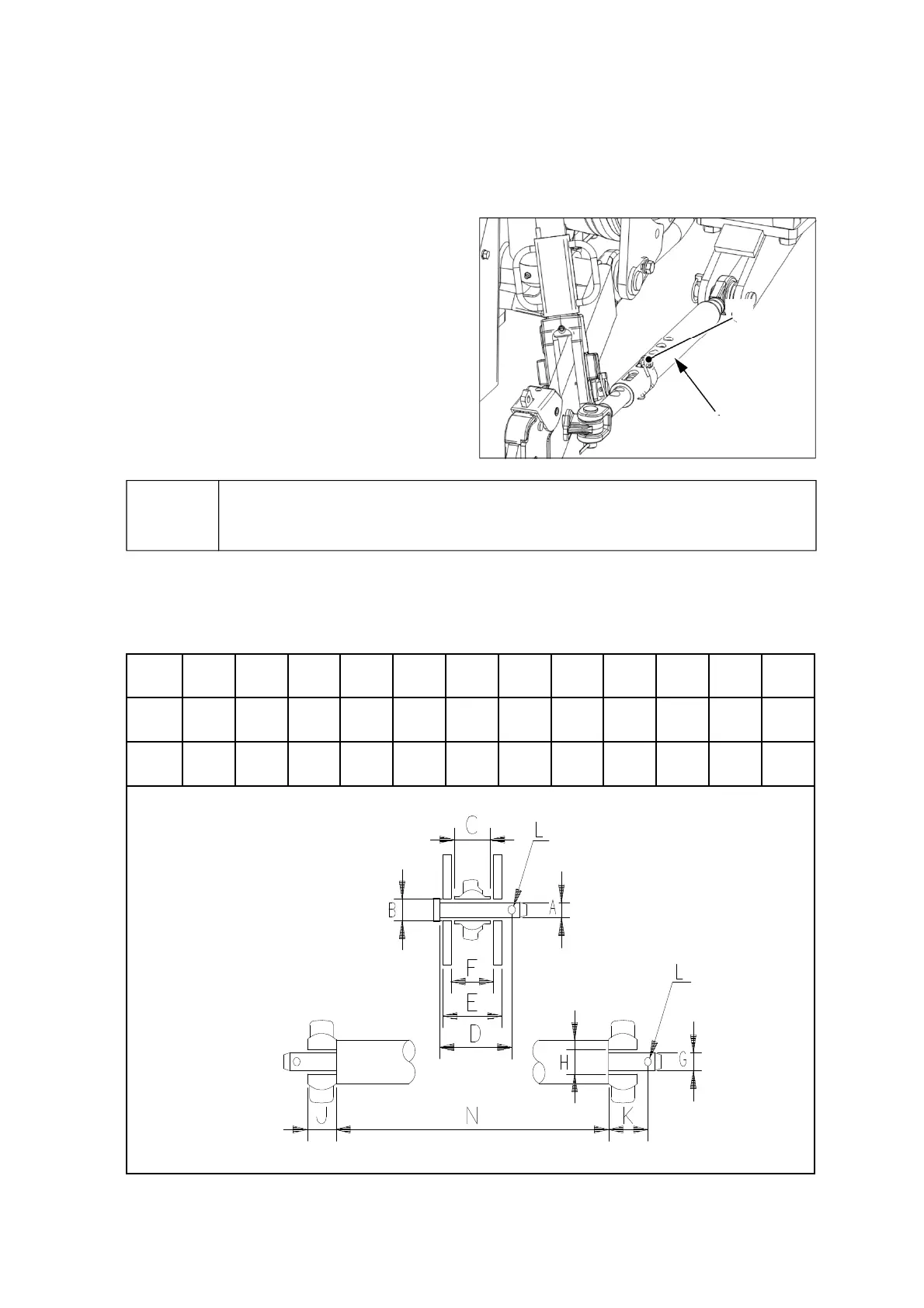

 Pull up the link pin(1) and turn the sleeve (2) of
the check link.
 Insert the link pin(1) into the hole and let it
tightened firmly by locking spring.
▶When adjusting the stabilizer’s length, set the implement’s lateral swinging
clearance to be 20~40mm. (0.8~1.6 in.)
Notice
①
Stabilizer
AB
C
(MAX)
D
(MIN)
E
(MAX)
F
(MIN)
GHJKLN
CAT.1
19
(0.74)
19.3
(0.75)
44
(1.73)
76
(2.99)
69
(2.71)
44.5
(1.75)
22
(0.86)
22.4
(0.88)
35
(1.38)
39
(1.53)
12
(0.47)
683
(26.8)
CAT.2
25.4
(1.00)
25.7
(1.01)
51
(2.00)
93
(3.66)
86
(3.38)
52
(2.04)
28
(1.10)
28.7
(1.12)
45
(1.77)
49
(1.92)
12
(0.47)
825
(32.4)
Unit : mm(inch)
④ Reference of implement installation part
