Chapter2. Profibus-DP Communication Module

2.4 Installation

Warning) Connect a communication network after the power supply

is off. If Profibus-DP communication module is removed or

installed, the power supply should be switched off. Otherwise, the

S100 inverter will be damaged entirely.

Take off Profibus-DP communication module from the product after

the power supply is totally discharged.

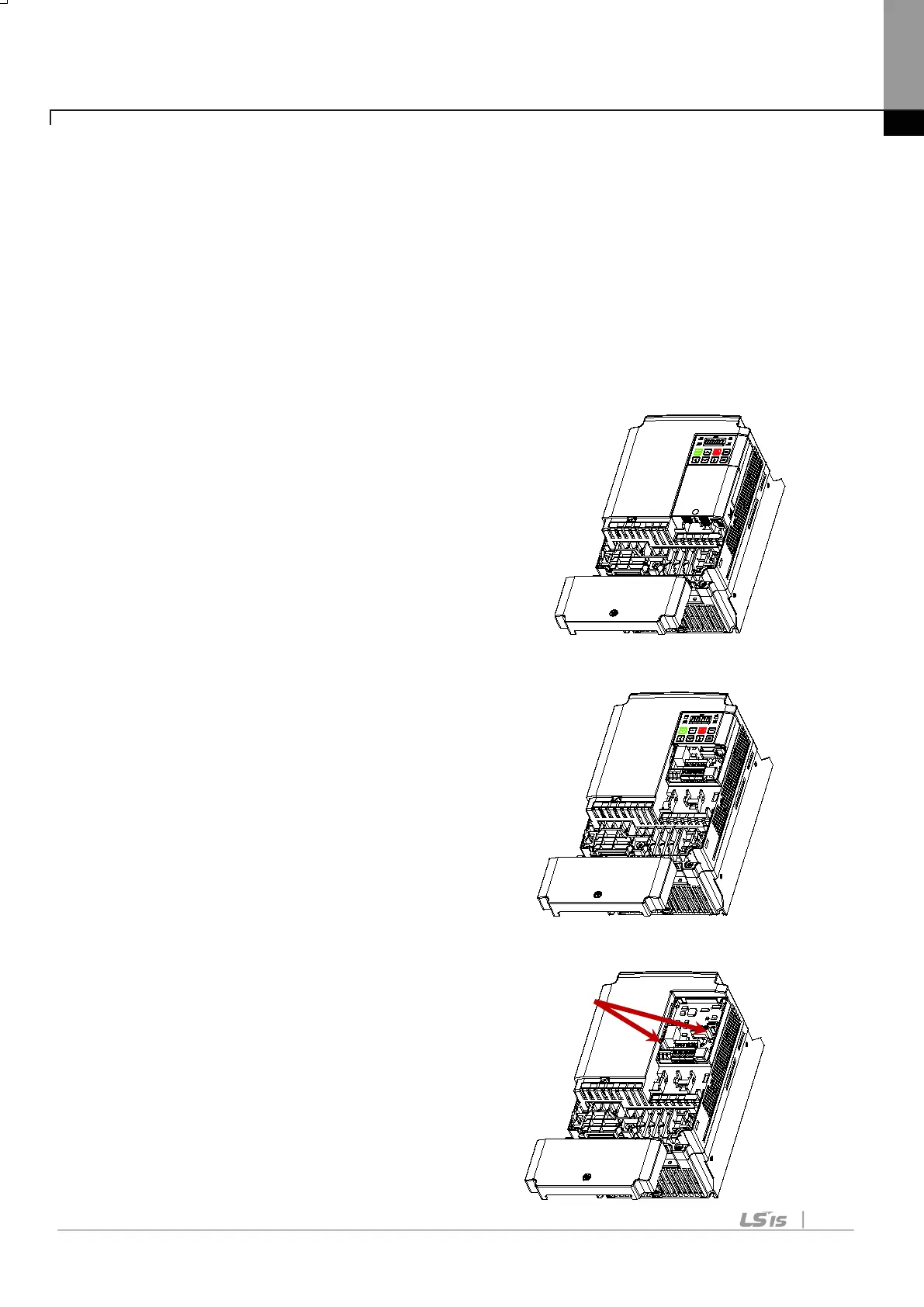

■ Unfasten the front cover fixing bolt

to remove the front cover and

remove I/O cover((1), (2)) from

a dedicated inverter

for communication.

■ Remove the keypad (3).

■ Unfasten a screw from

I/O board and

fasten the prepared

brass bar(4).

(1)

(2)

(3)

(4)
