Chapter 1 – Installation
9

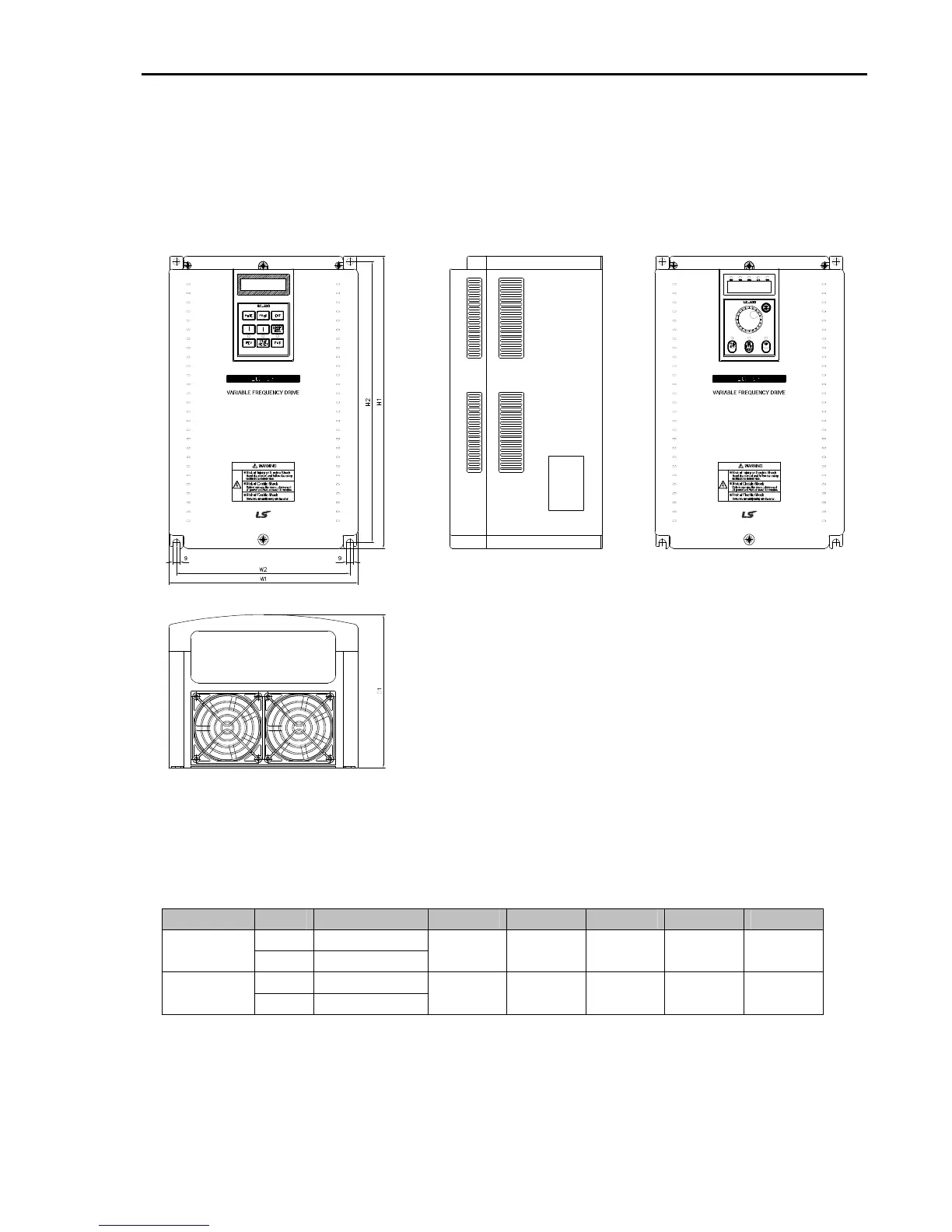

n Frame # 3: 15 ~ 20 HP
n Frame # 4: 25 ~ 30 HP
mm (inches)
Frame HP Model Number
W1 W2 H1 H2 D1
15 SV110iS5-2/4
Frame # 3
20 SV150iS5-2/4
250
(9.84)
230
(9.06)
385
(15.16)
370
(14.57)
201
(7.91)
25 SV185iS5-2/4
Frame # 4
30 SV220iS5-2/4
304
(11.97)
284
(11.18)
460
(18.11)
445
(17.52)
234
(9.21)
