1.2 Part Names

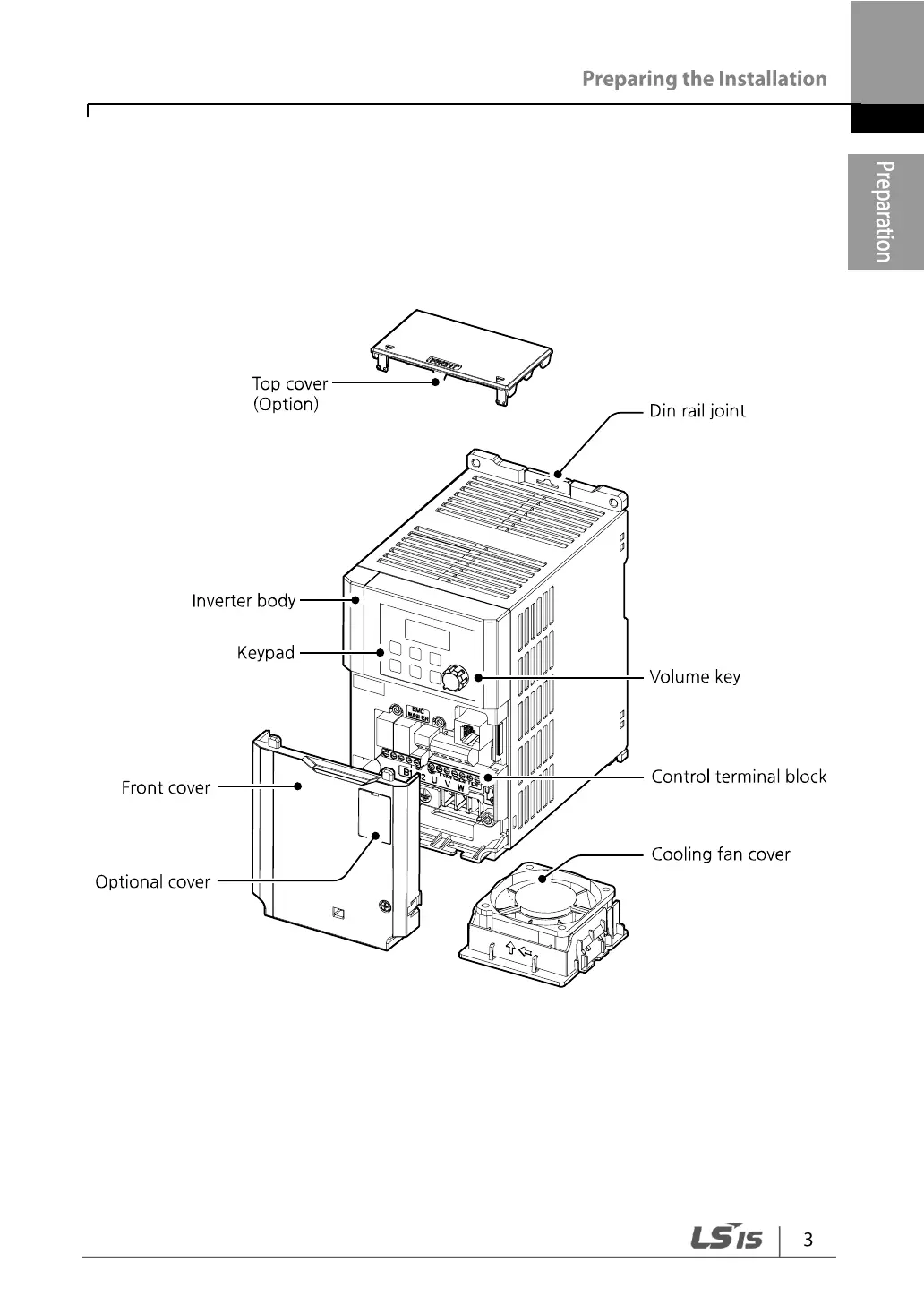

See the assembly diagram below for the part names. Detailed images may vary

between product groups.

0.4–4.0 kW (3-Phase)
