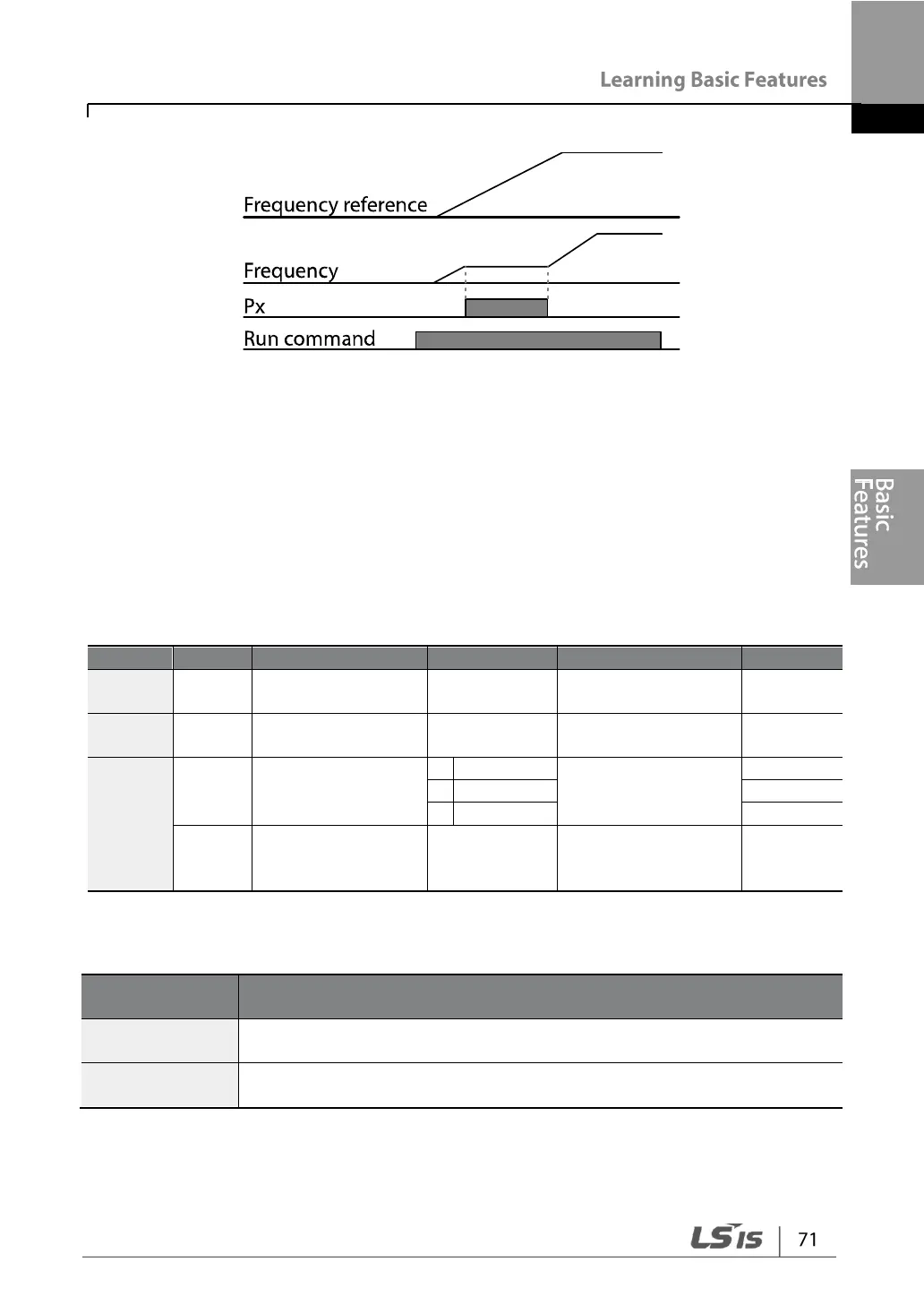

4.3 Multi-step Frequency Configuration
Multi-step operations can be carried out by assigning different speeds (or frequencies)
to the Px terminals. Step 0 uses the frequency reference source set with the Frq code
in the Operation group. Px terminal parameter values 7 (Speed-L), 8 (Speed-M) and 9
(Speed-H) are recognized as binary commands and work in combination with Fx or
Rx run commands. The inverter operates according to the frequencies set with St.1–3
(multi-step frequency 1–3), bA.53–56 (multi-step frequency 4–7) and the binary
command combinations.
Group
Code
Name
Setting
Setting Range
Unit
Operatio
n
St1–St3
Multi-step
frequency 1–3
-
0–Max Frequency
Hz
bA
53–56
Multi-step
frequency 4–7
-
0–Max Frequency
Hz
In
65–69
Px terminal setting
options
7
Speed-L
0–52
-
8
Speed-M
-
9
Speed-H
-
89
Multi-step
command delay
time
1
1–5000
ms
Multi-step Frequency Setting Details
Code and
Features
Description
Operation group
St1–St3
Configure multi-step frequency 1–3.
bA.53–56
Step Freq - 4–7
Configure multi-step frequency 4–7.
