2.1 Mount on the Wall or within the Panel
Mount the inverter on a wall or inside a panel following the procedures provided below.
Before installation, ensure that there is sufficient space to meet the clearance
specifications, and that there are no obstacles impeding the cooling fan’s air flow.
Select a wall or panel suitable to support the installation. Refer to 11.3 External
dimensions on page 307 and check the inverter’s mounting bracket dimensions.
1 Use a level to draw a horizontal line on the mounting surface, and then carefully
mark the fixing points.

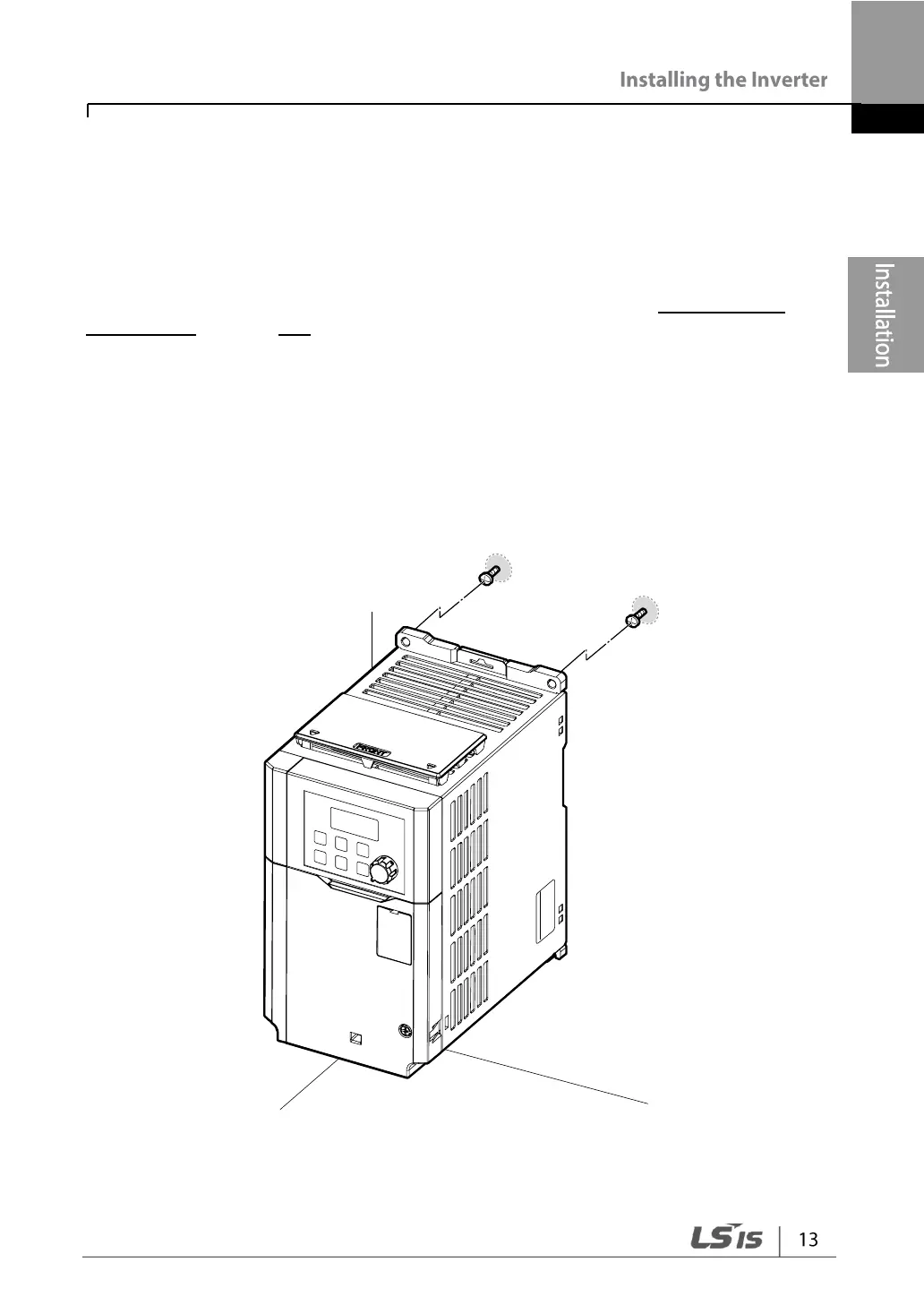

2 Drill the two upper mounting bolt holes, and then install the mounting bolts. Do not
fully tighten the bolts at this time. Fully tighten the mounting bolts after the inverter
has been mounted.
