11.8 Continuous Rated Current Derating

Carrier Frequency

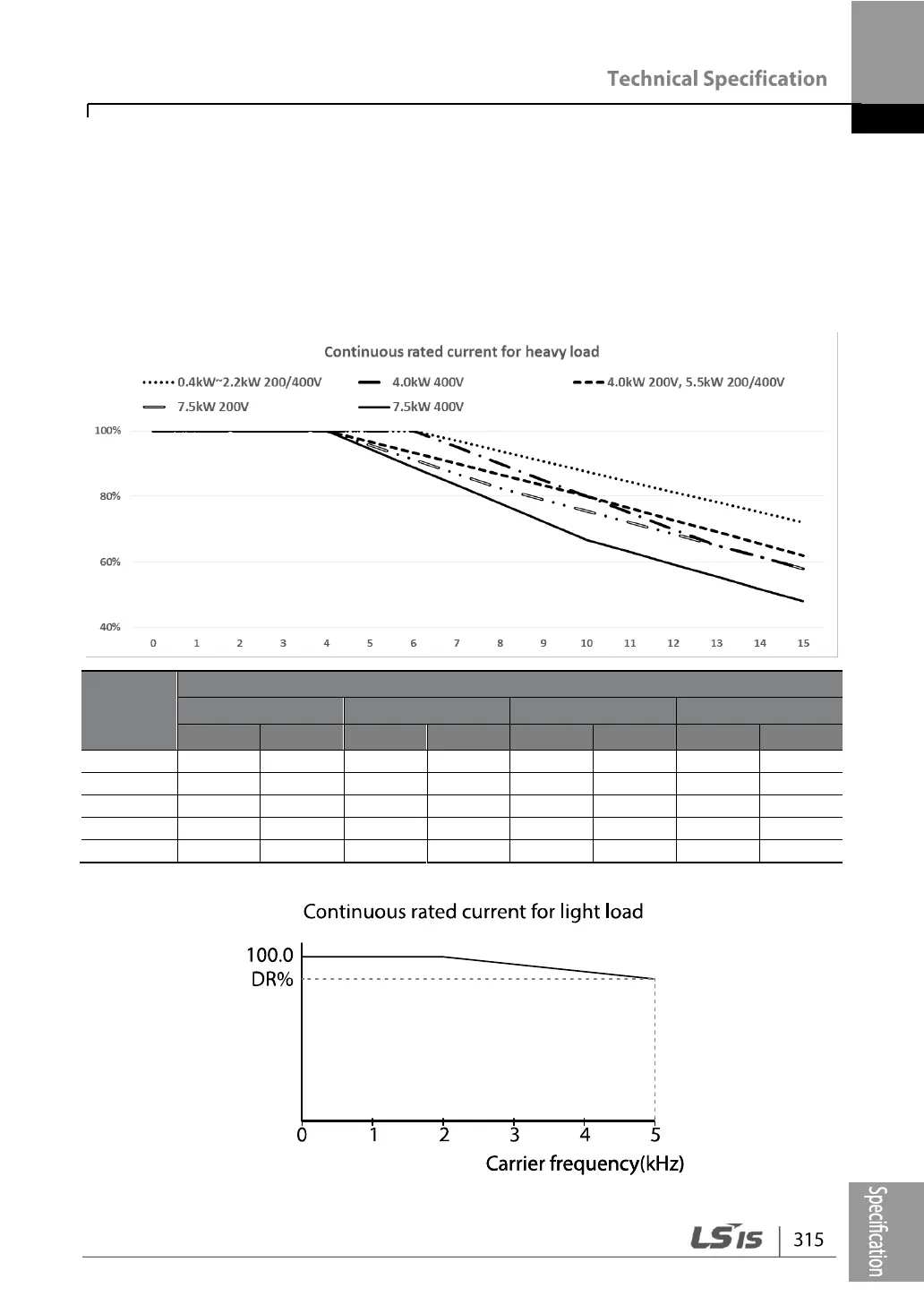

The continuous rated current of the inverter is limited based on the carrier frequency.

Refer to the following graph.

Carrier

frequency

(kHz)

Continuous rated current

0.4~2.2kW

4.0kW

5.5kW

7.5kW

200V

400V

200V

400V

200V

400V

200V

400V

1~4

100%

93%

100%

93%

91%

89%

91%

83%

85%

83%

79%

72%

81%

73%

70%

73%

69%

59%

72%

62%

58%

62%

58%

48%
