Chapter 6 Server function and P2P service
6-19
First, to register frame, add group as “ACK”, “NAK”.

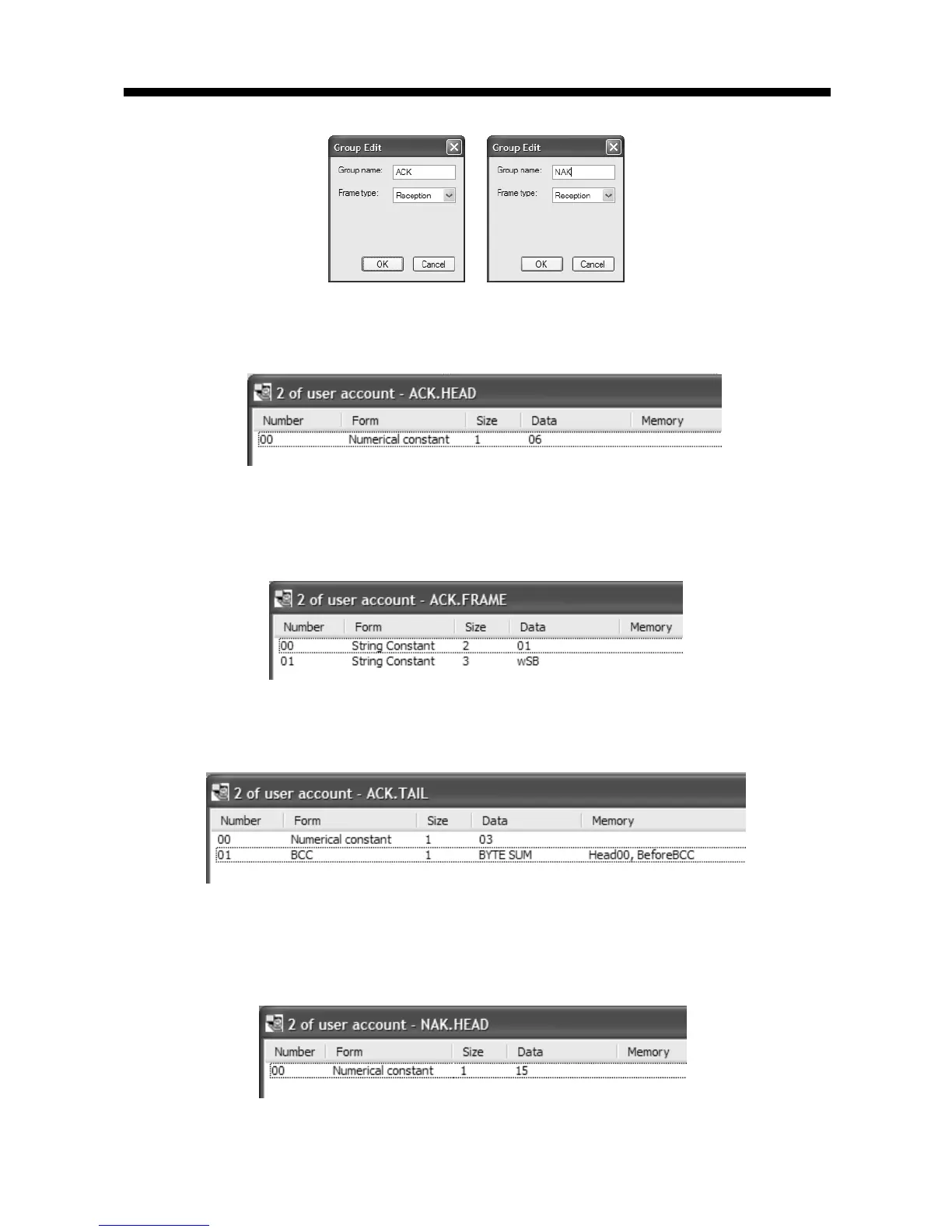

[Figure 6.2.27] ACK, NAK reception group registration screen about wSB request frame
▪Adds frame registered reception frame group “ACK”.
A) Head registration
[Figure 6.2.28] ACK reception frame Head registration screen
B) Body registration
Registers at Body about data to process and instruction among reception frame
[Figure 6.2.29] ACK reception frame Body registration screen
C) Tail registration
[Figure 6.2.30] ACK reception frame Tail registration screen
▪ Registers frame at registered reception frame group “NAK”
A) Head registration
[Figure 6.2.31] NAK reception frame Head registration screen
