LSIS XBL-C21A User Manual

Chapter 6 Server function and P2P service
6-18

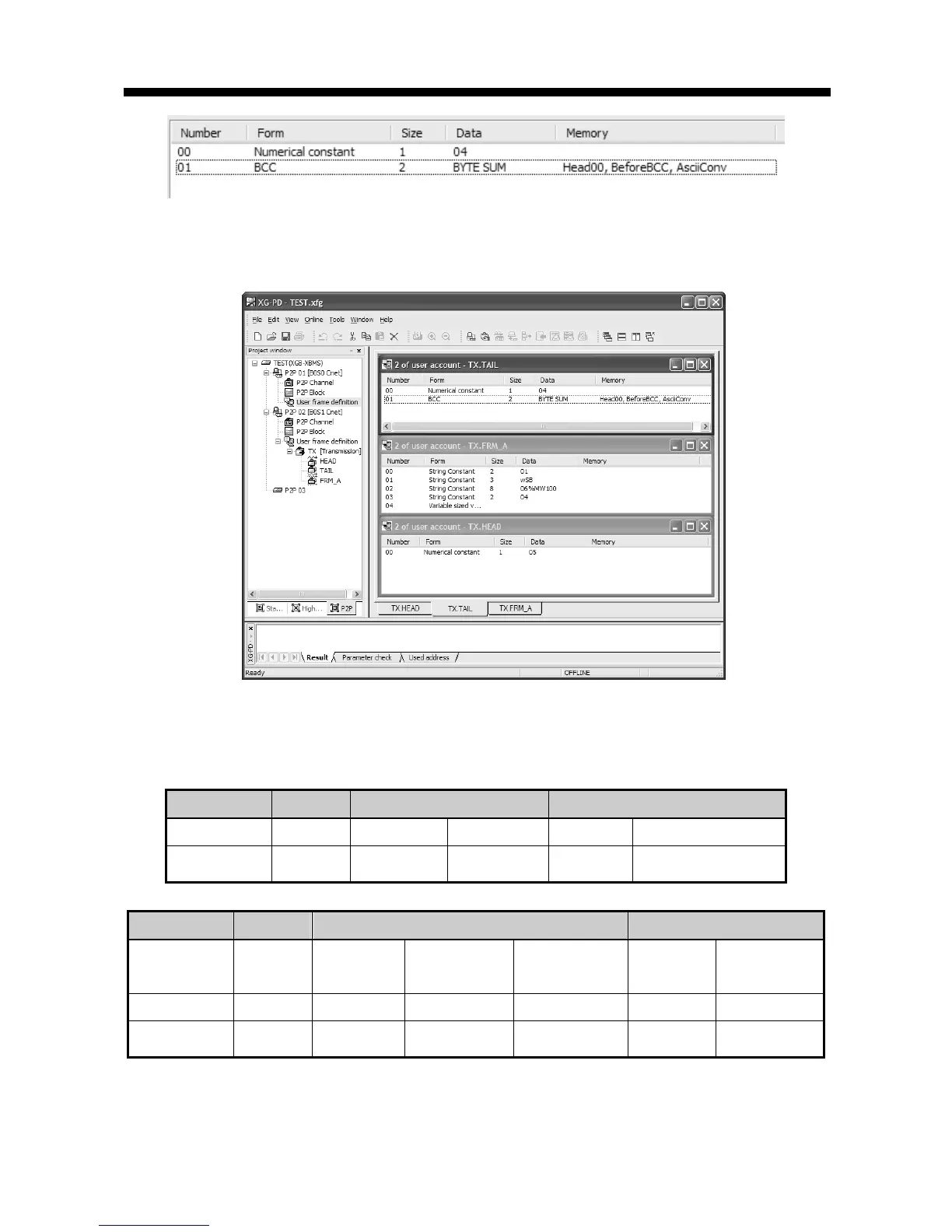

[Figure 6.2.25] Transmission frame Tail registration screen
The following is screen where transmission frame registration is complete.
[Figure 6.2.26] transmission frame setting complete screen
6) Reception frame
In case of receiving temporary frame, first you should define reception frame. In case of receiving
ACK, NAK response reception frame, registration method is as follows.
ACK.FRAME Head Body Tail
Frame 0x06 01 wSB 03 BCC
Reference
Numerical
constant
String
constant
String
constant
Numerical
constant
Byte Check Sum
ASCII
NAK.FRAME Head Body Tai l
Frame 0x15 01 wSB
Fix sized
variable
03 BCC
Size (byte) 1 2 3 2 1 2
Reference
Numerical
constant
String
constant
String
constant
(Error code
saving area)
Numerical
constant
Byte Check
Sum ASCII
