Digital Video Recorder User Manual
15
Item Name Description
13 ALARM IN Connect to external sensor1-4
14 Audio in 4 CH Audio input
Tab 2.3 Definitions of Front Panel Buttons

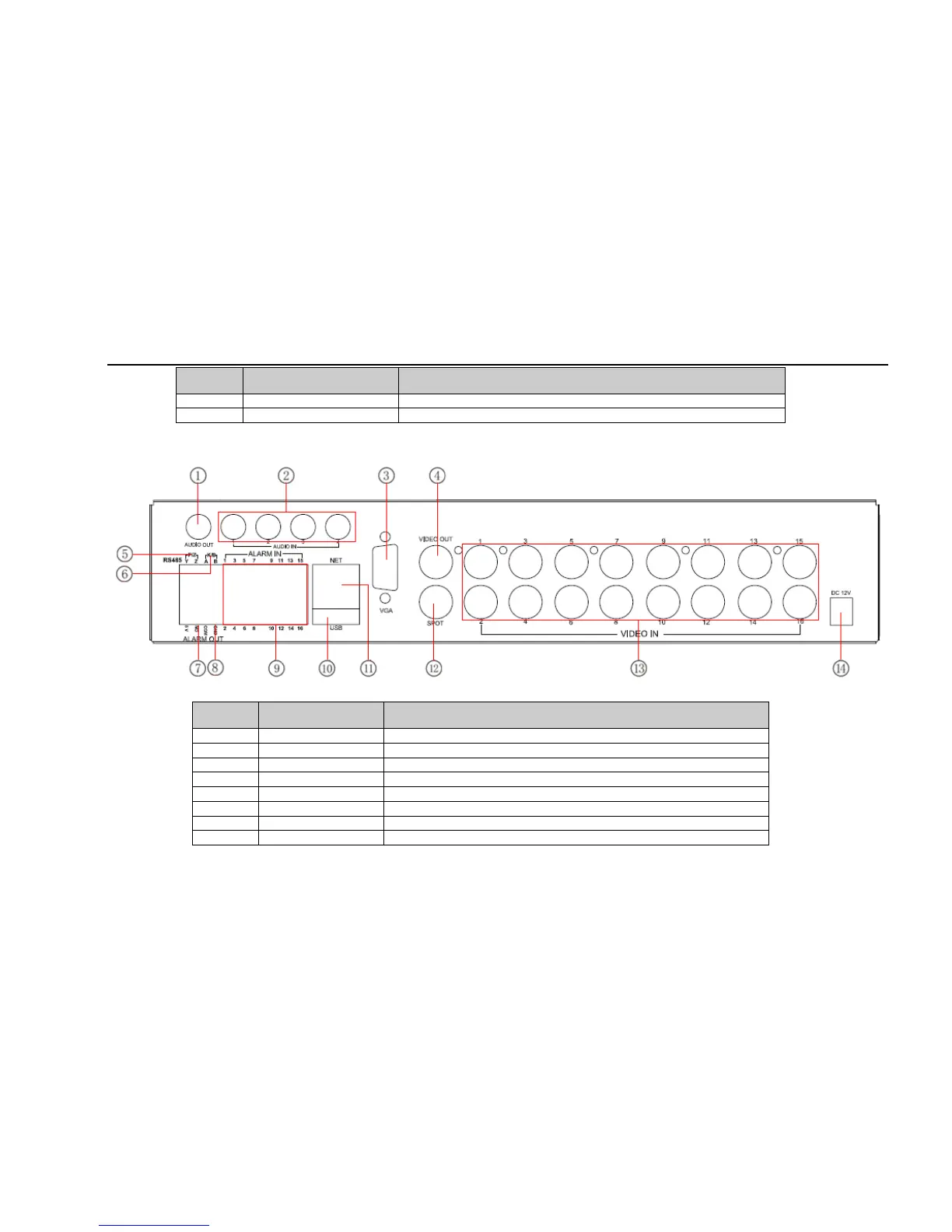

The rear Panel interface for 16-ch is shown as Fig 2.6:
Fig 2.6 Rear Panel for 16-ch
Item Name Description
1 Audio out Audio output, connect to the sound box
2 Audio in 4 CH Audio input
3 VGA port VGA output, connect to monitor
4 Video out Connect to monitor
5 P/Z Connect to speed dome
6 K/B Connect to keyboard
7 ALARM OUT 1-ch relay output. Connect to external alarm.
8 + 5V and GND +5 V and Grounding
