Lubecore 210 - Truck Timer Wiring Identification After Sept 2019

29

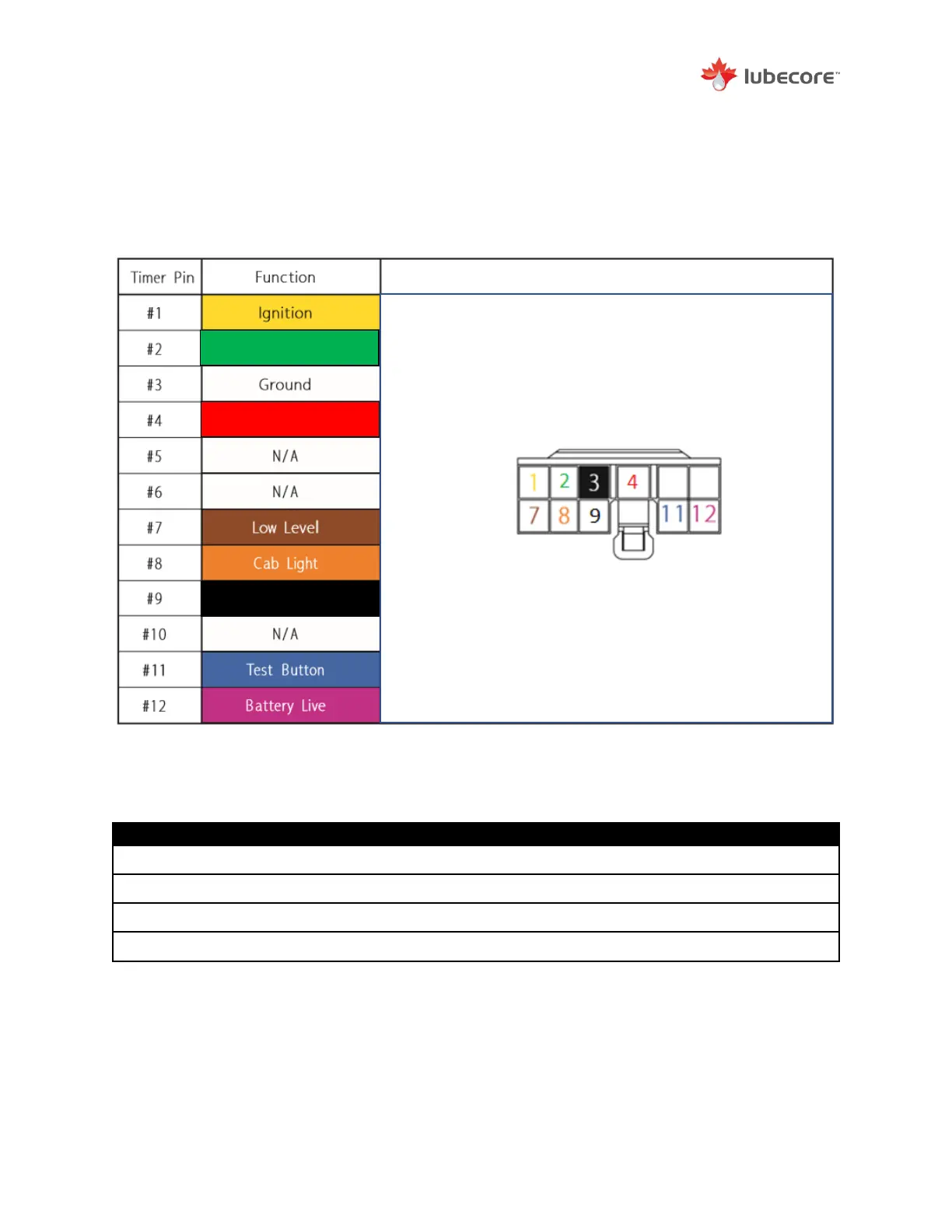

Truck Timer Terminal & Wiring Identification After
September 2019
Table 2 Terminal and Wire Identification Table September 2019 and Later
Table 3 – Timer Technical Specifications
Timer Specification Based on Model (12.016 & 12.036)
Remarks
Voltage Range
10-30
VDC
Audible Alarm
87
DbA
Output Current Max
40 / 500
Amp / Watt
Alarm Light Output Current Max
5 / 75
Amp / Watt
Pressure Switch
Solenoid/Motor +
Solenoid/Motor -
Mark II Timer Plug (Used from September 2019 - Present
