Pump Mounted Timer Connections
Sequential Communication LED & Indicator

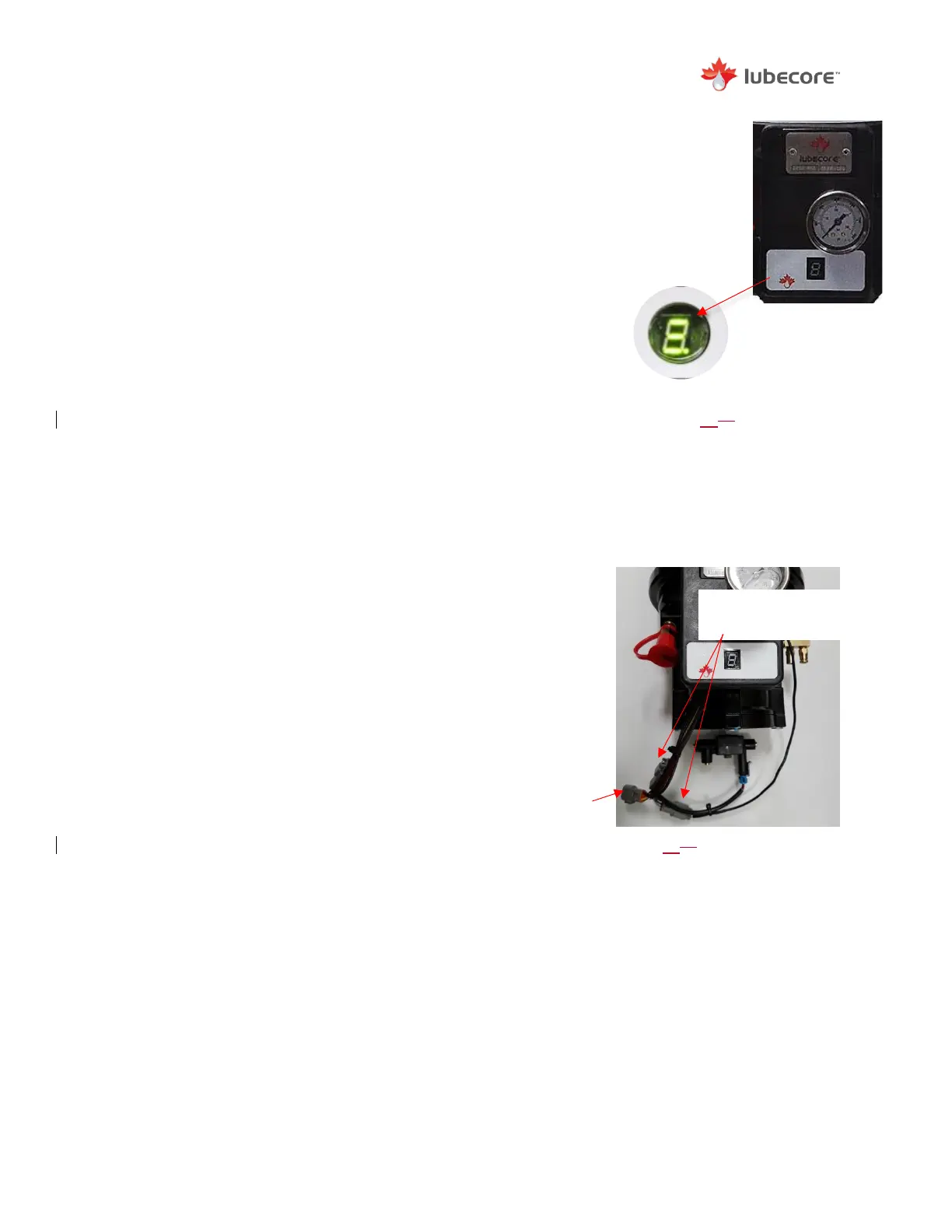

The timer has been equipped with a set of LED’s.
1) A green LED, “dot” mounted at the bottom right of the
viewing port will illuminate when power is provided to the
timer.
2) The LED, “dot” will start flashing signifying that the timer is
counting down till cycle application takes place.
Electrical wiring connections
The pump mount timer can be connected to either one of three
power sources in a trailer application: the power feed to the Anti-
lock Braking System (ABS), to the nose or junction box of a
trailer or to a rechargeable power supply.
Depending on connections a variety of harnesses and wiring are
available, please contact Lubecore for further details.
Figure 3337
MKII Progressive Pump Mount
Timer (12.079)
Figure 3438
MKII Progressive Pump Mount
Timer with Deutsch™ DT &
DTM Connector
3 wire harness connection
to power harness
Connections for
solenoid and low level
