Lubecore 210 - Manifold Blocks for Injectors

47
Table 7 – Available Injector Sizes
Description
Part Number
Output Size (cc/Stroke)
Injector #0
11.800
0.025
Injector #1
11801
0.050
Injector #2
11.802
0.100
Injector #3
11.803
0.150
Injector #4
11.804
0.200
Injector #5
11.805
0.250
Injector #6
11.806
0.300
Injector #7
11.807
0.350
Injector #8
11.808
0.400
Injector #8.5
11.885
0.700
Injector #9
11.809
1.000
APPLICATION OF LUBRICANT
LUBECORE MKII PARALLEL METERING UNITS (PMU) ARE NOT LIMITED FOR USE WITH A SINGLE
TYPE OF LUBRICANT. DEPENDING ON ENVIRONMENTAL CONDITIONS AND OTHER SYSTEM
COMPONENTS, PMU’S COULD BE USED

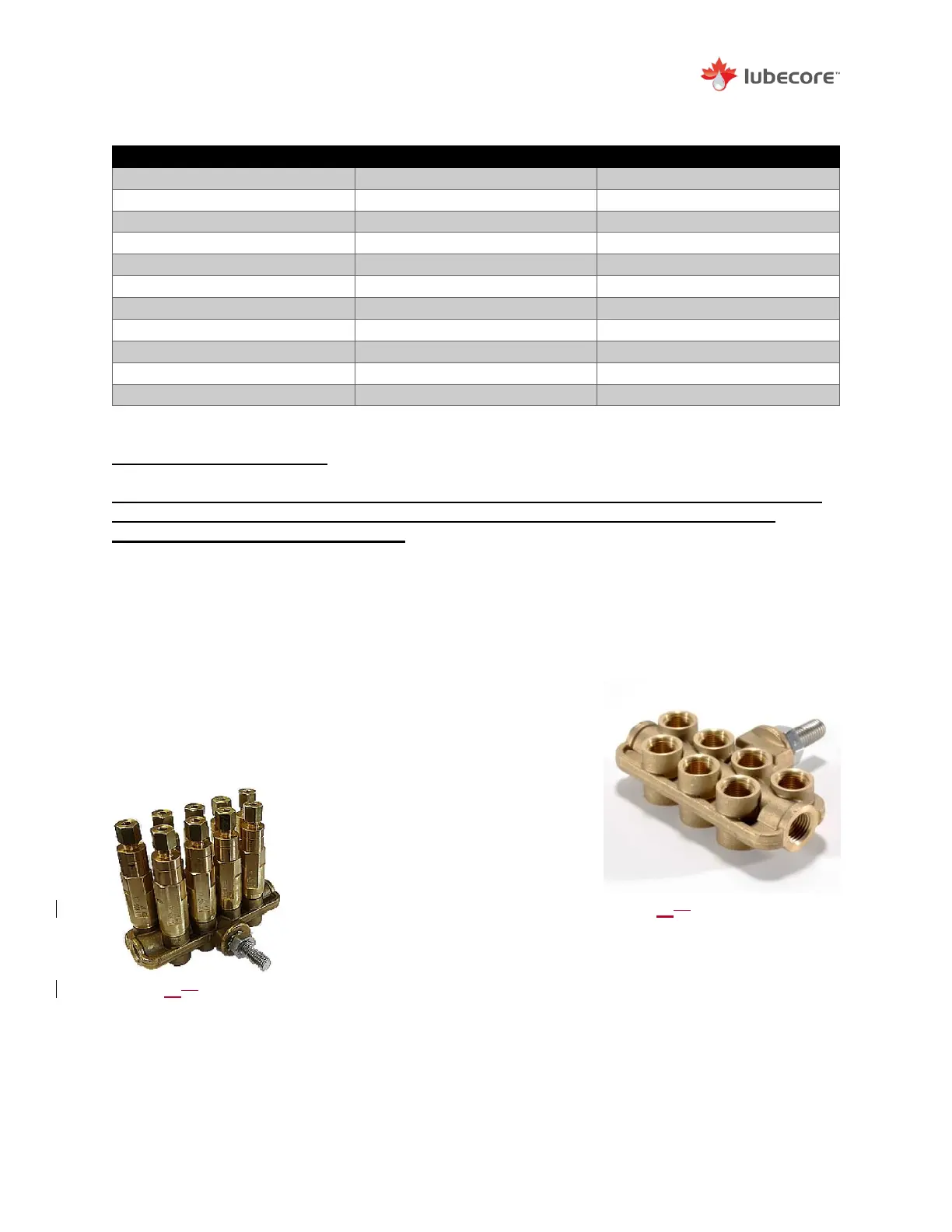

Manifold Blocks
Parallel metering units are centrally located near a cluster of
lubrication points and are connected to the system in
manifolds. Manifolds are manufactured out of corrosion
resistant brass.
Figure 3943
Brass Manifold Block
Figure 4044
Manifold with injectors
installed into it
