LUKO FD-S60L - 3.10 Drainpipe Connection

Page
12
of
35

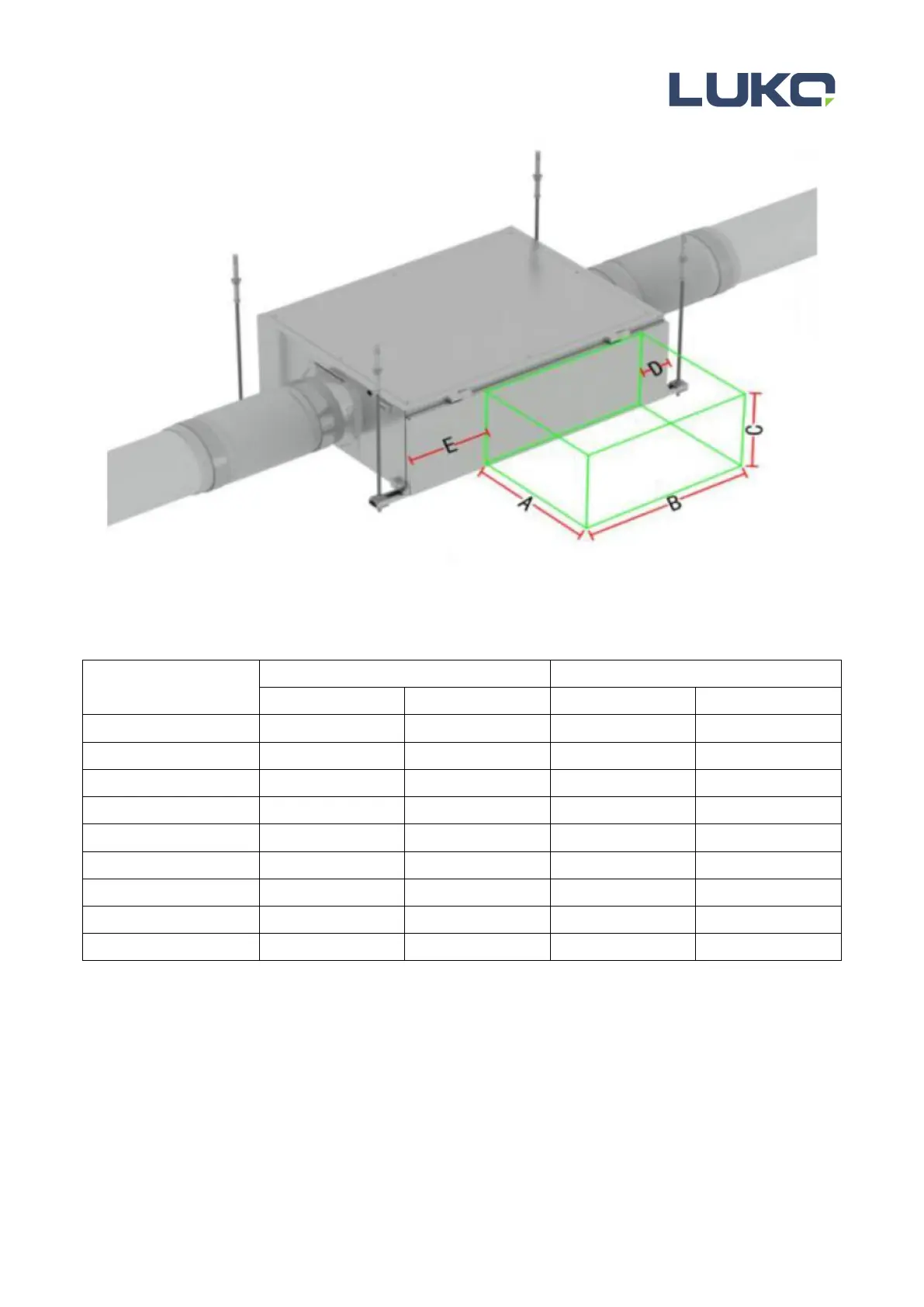

Model
Service Area
Void Area / No Blockage
A
B
E
D
FD-S28L / X28L
400mm
490mm
100mm
100mm
FD-S40L / X40L
500mm
600mm
100mm
100mm
FD-S60L / X60L
500mm
600mm
100mm
100mm
FD-S100L / X100L
600mm
650mm
100mm
100mm
FD-S140L / X140L
600mm
650mm
100mm
100mm
FD-S180L / X180L
500mm
500mm
270mm
100mm
FD-S250L / X250L
500mm
500mm
270mm
100mm
FD-S380L / X380L
500mm
600mm
370mm
100mm
FD-S500L / X500L
500mm
600mm
370mm
100mm
3.10 Drainpipe connection
Drainpipe is a transparent hose, please connect it as per the drawing as below:
