4 OPERATIONS

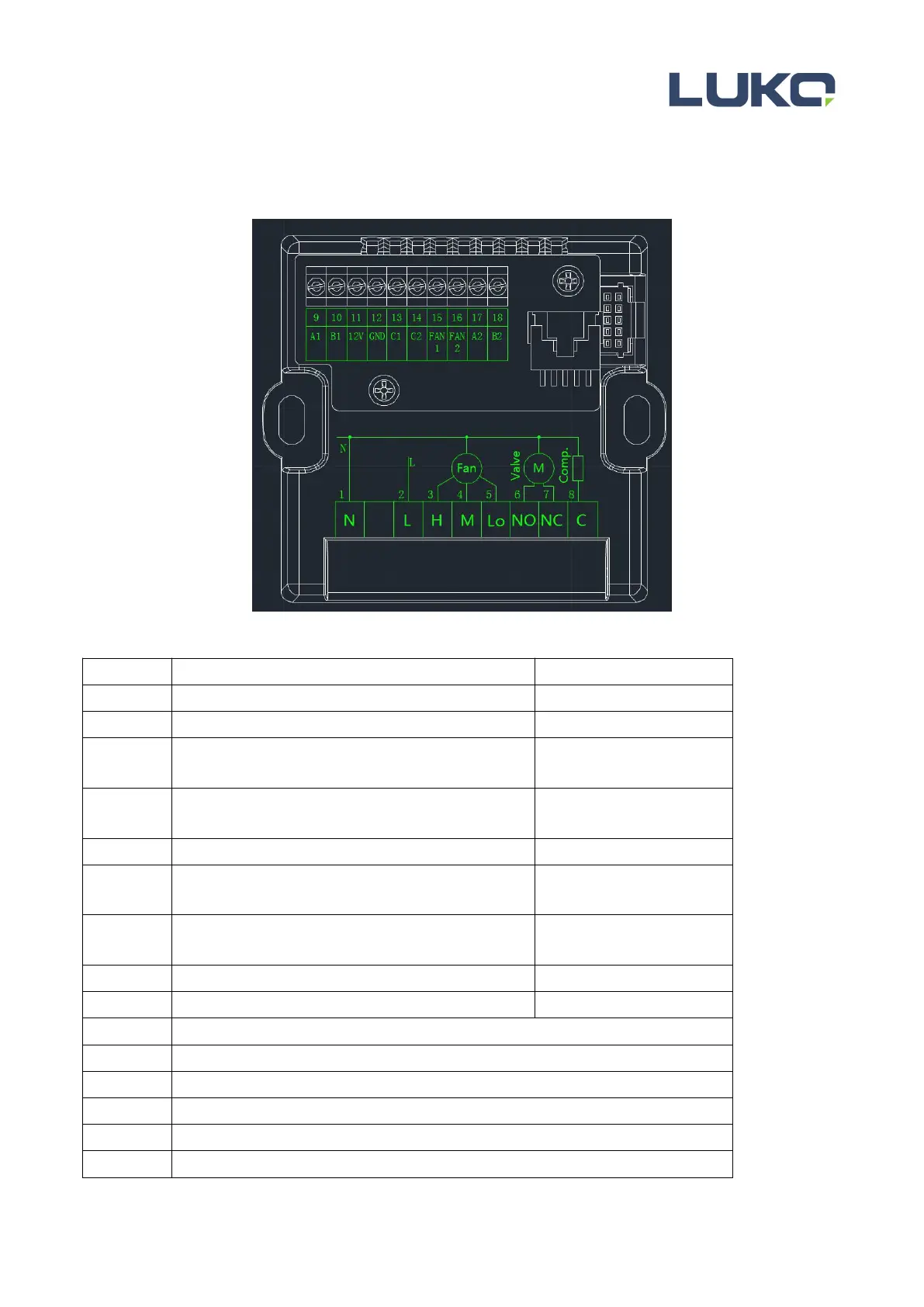

4.1 Controller Terminals:
Terminal
Description
Load
L, N
230VAC
Power supply
Relay 1 - H
230VAC output, Max.1A
High fan speed
Relay 2 -
M
230VAC output, Max.1A
Medium fan speed; Fan
coil valve
Relay 3 -
Lo
230VAC output, Max.1A
Low fan speed; Humidifier
Relay 4 - C
230VAC output, Max.1A
Compressor
Relay 5 -
NO
230VAC output, Max.1A, SPDT(single-pole
double-throw)
Air damper open
Relay 5 -
NC
230VAC output, Max.1A, SPDT(single-pole
double-throw)
Air damper close
EC FAN1
0~10V
DC motor supply fan
EC FAN2
0~10V
DC motor exhaust fan
GND
Low current common terminal
RS485 - A1
Communicate with external temp.& humidity sensor
RS485 - B1
Communicate with external temp.& humidity sensor
RS485 - A2
Communicate with third-party
RS485 - B2
Communicate with third-party
12VDC
Power the external temp.& humidity sensor
