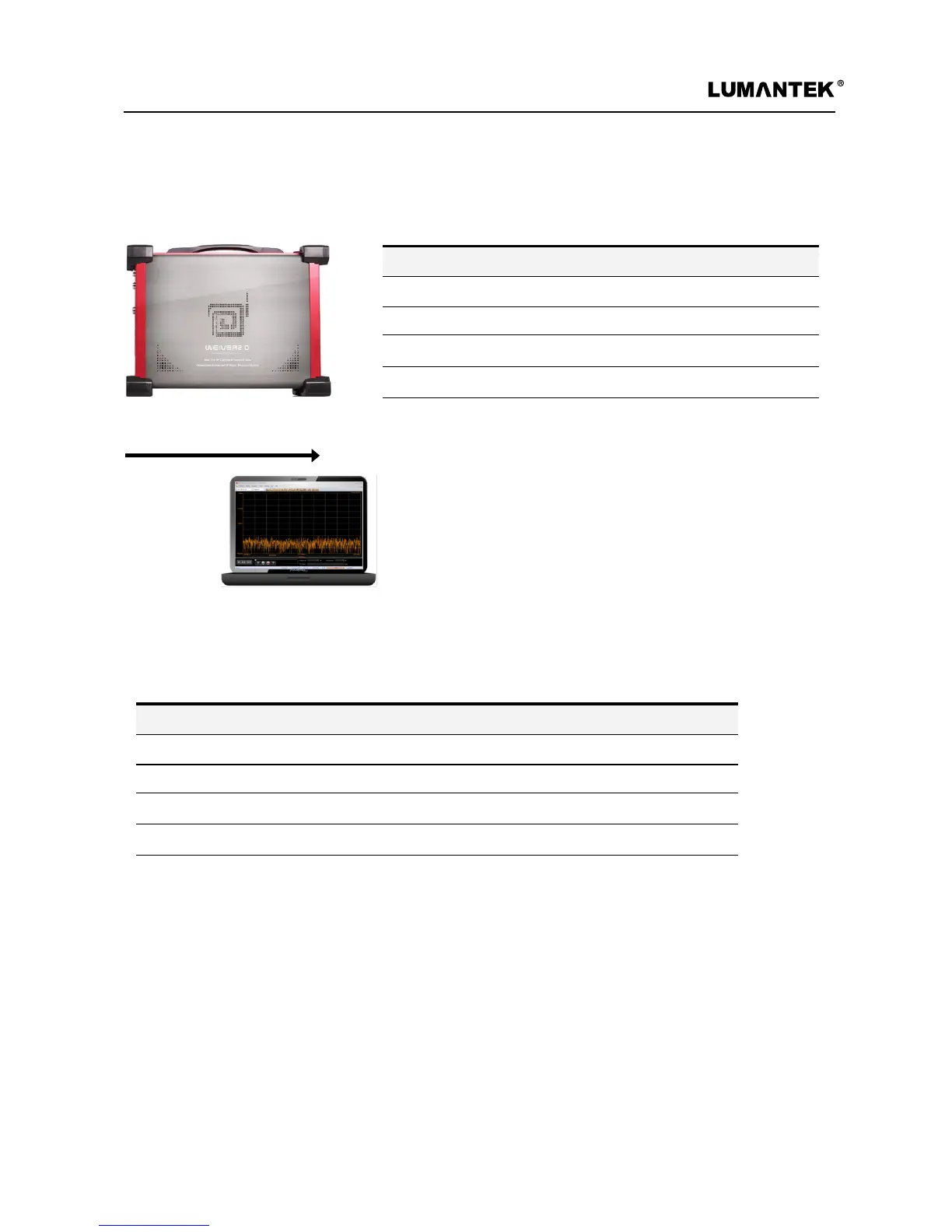

Lumantek WEIVER 2.0 User Manual

WEIVER 2.0 Manual
Weiver 2.0
/ Operations Manual
33
* Weiver FFT (WeiverEx), Capture Mode - BandWidth : 24M(Sampling Clock 30M)
BandWidth : 1~56M
ResBW
3KHz
5KHz
10KHz
20KHz
Complex FFT Point
10K Point
6K Point
3K Point
1.5K Point
Sampling Clock(IQ Rate)
30MHz(= 3KHz X 10K Point )
30MHz(= 5KHz X 6K Point )
30MHz(= 10KHz X 3K Point )
30MHz(= 20KHz X 1.5K Point )
* Weiver IQ windowing (WeiverEx)
I Signaling
Q Signaling
* Weiver FFT (WeiverEx), Capture Mode
* Weiver FFT (WeiverEx), Play Mode
BandWidth : Same as ‘ Capture Mode “ in both of 8M, 24M, 48M and 56M.
In Play Mode, IQ Rate is variable value in 1MHz to 60MHz, and FFT Point is also variable value.
BandWidth : 8M(Sampling Clock 10M)
ResBW
3KHz
5KHz
10KHz
20KHz
Complex FFT Point
3.3K Point
2K Point
1K Point
0.5K Point
Sampling Clock(IQ Rate)
10MHz(= 3KHz X 3.3K Point )
10MHz(= 5KHz X 2K Point )
10MHz(= 10KHz X 1K Point )
10MHz(= 20KHz X 0.5K Point )
- Average : The Average function has Exponential features in the Spectrum View.
- Unit dB : The RF Power of the unit can be changed in dBm, dBmV, dBuV individually by user's dierence.
- Marker : Provides the function of measuring a signal power of marker point simultaneously up to 4 Makers.
- Spectrum Update : Five options, Fastest, Faster, Normal, Slower, Slowest are available and decide the screen update
speed.
