Weiver 2.0
/ Operations Manual
85

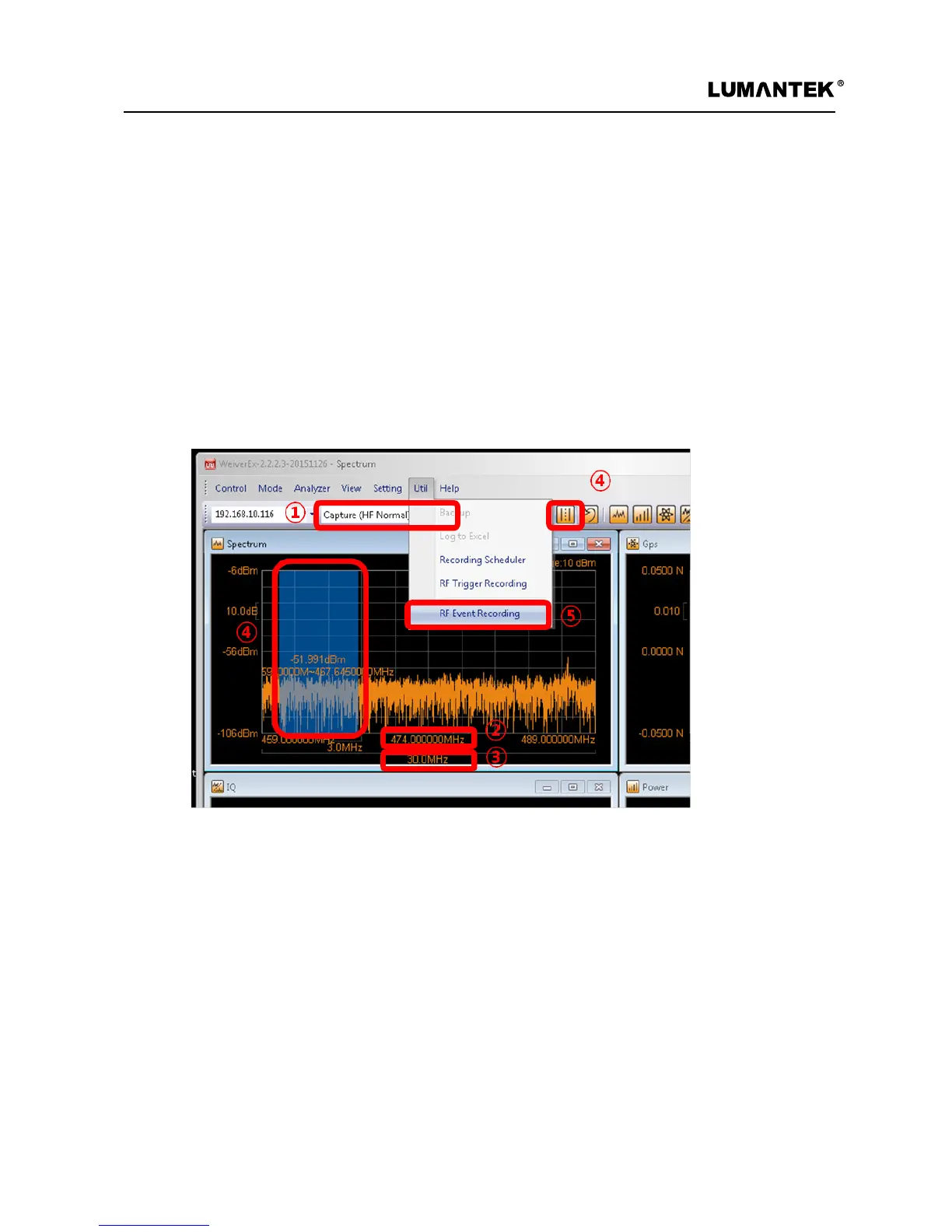

- Run ‘WeiverEx’ program-> Connect to Weiver 2.0 system.
1) Select the RF port for the recording [Capture(LF Normal)]
2) Set the Center Frequency (16MHz)
3) Set Bandwidth (30MHz)
4) Click ‘Spectrum’ window and select BW Power mode. (For ‘BW Power’ Event recording)
5) Click ‘Util’->’RF EventRecording’
*Please congure AGC O/On and Range
4.2 / Event Recording UI & Settings
