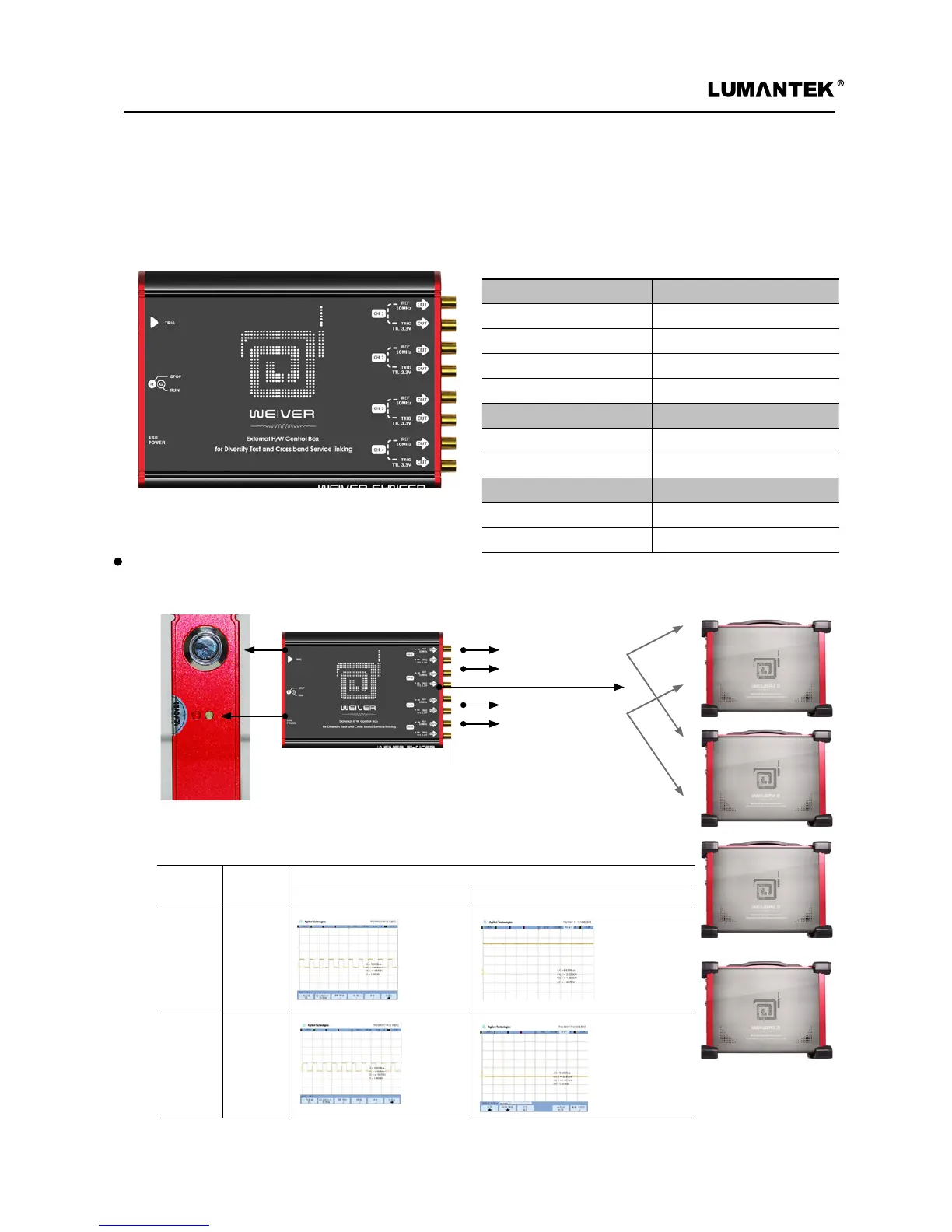

3.12 / WEIVER Syncer Operation(Optional)
10MHz OCXO Specication values
Freq. Stability vs. Temp ±50 ppb max.
Aging per Year ±500 ppb max.
Warm-Up @ 25 ºC ±500 ppb max. (In ≤ 3-Minutes)
REF 10MHz Output PWR. +7dBm ±1dB
POWER Specication values
Supply Voltage +5.0 VDC
Power Consumption Max. 2 Watts
Trigger TTL Specication values
TRIG Button “RUN” Output Voltage +3.3VDC
TRIG Button “STOP” Output Voltage 0 VDC
WEIVER Syncer Specication
External trigger for running multiple WEIVERs
Syncer Sideview
Up to 4 Devices
Out : Ref 10MHz OCXO
Out : Trigger TTL 3.3V
In : USB Power
Out : Ref 10MHz OCXO
Out : Trigger TTL 3.3V
Syncer Description
LED Button OUT
Ref 10MHz Trigger Level
Green Push
Red Push
3.3 V
0 V
