Weiver 2.0
/ Operations Manual
83
3.13 / WEIVER Bias-Tee Operation(Optional)
1) What is BIAS-TEE?
A T-shaped component attached to the signal cable to supply power to the antennas
2) Purpose?
Amplifier (LNA, TR, FET and etc) circuits are configured in close proximity to the antennas to improve
receive sensitivity, and a separate DC power supply (DC) is required to activate these active elements.
3) Specication
FQ. Range 48MHz to 2700MHz
Insertion Loss Max. 1dB
Output Current Max. 200mA
DC Output Voltage +5V, +6V, +8V, 12V

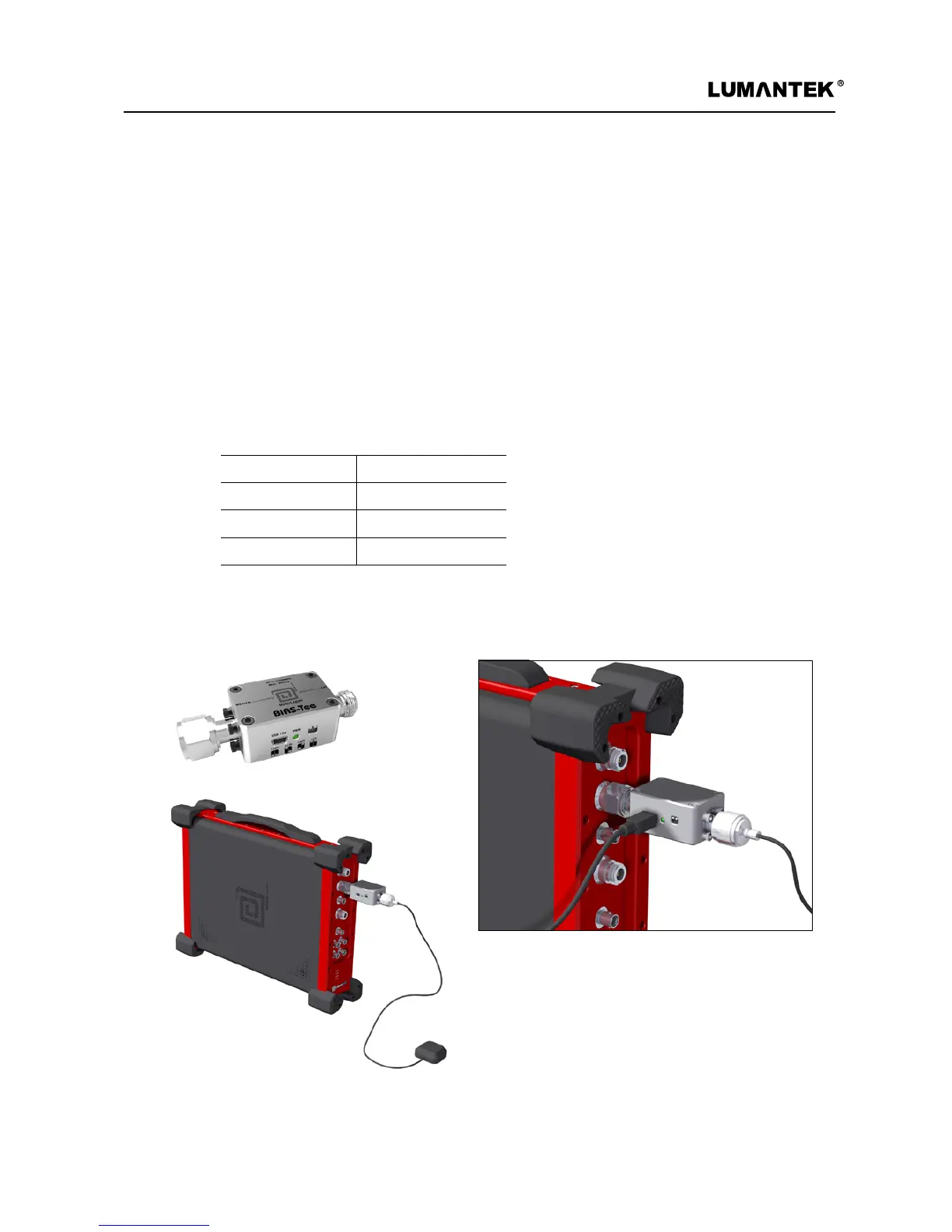

4) Installation instructions
Please refer to the picture below.
