4.2. Examples of Connections

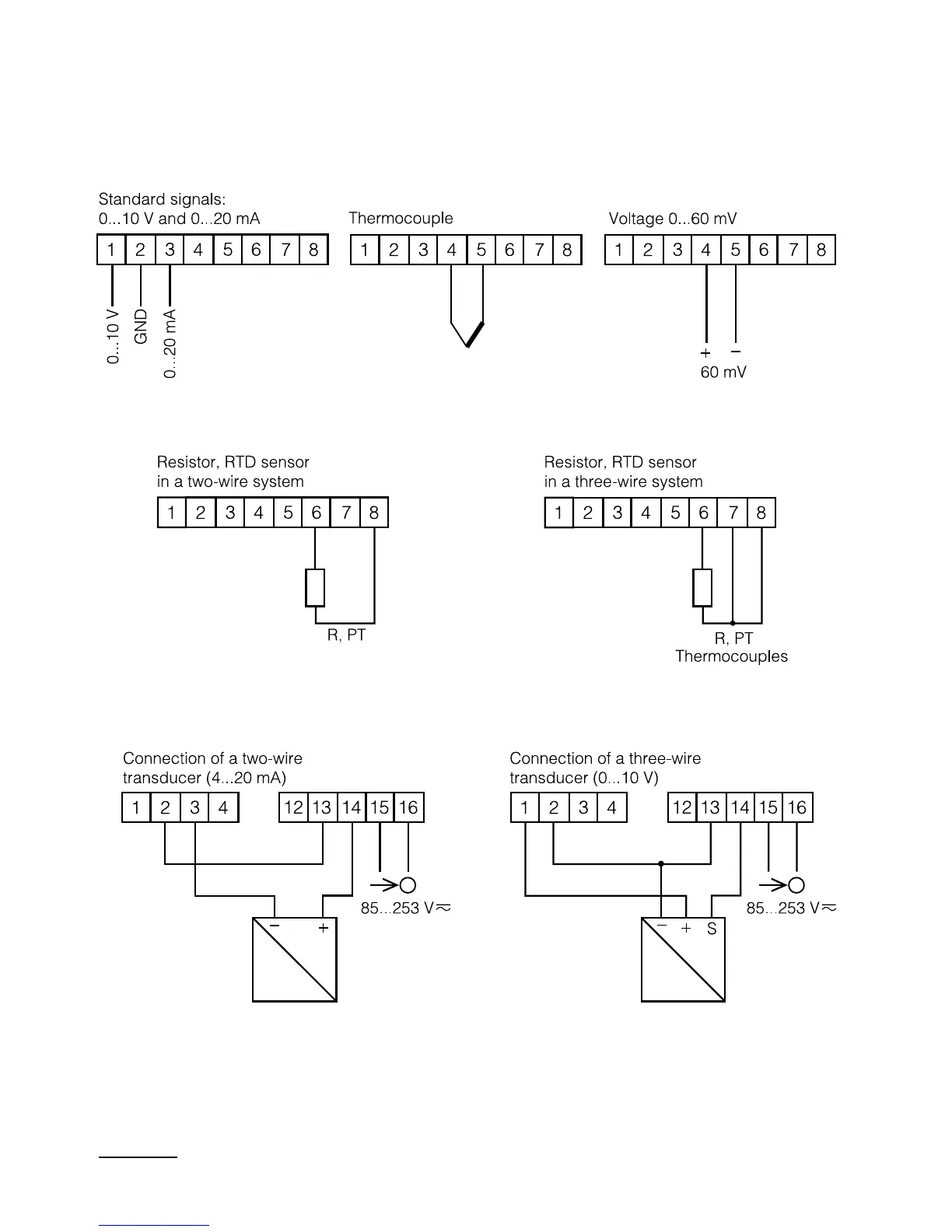

An example of the N30U meter connection to different signals is pre-
sented on the fig. 5.
Fig. 5. Ways of the meter Connection
For
the
connection
of
input
signals
in
environments
with
a
high
noise
level, one must apply shielded wires.
