3.2.2.5 Precautions for installation

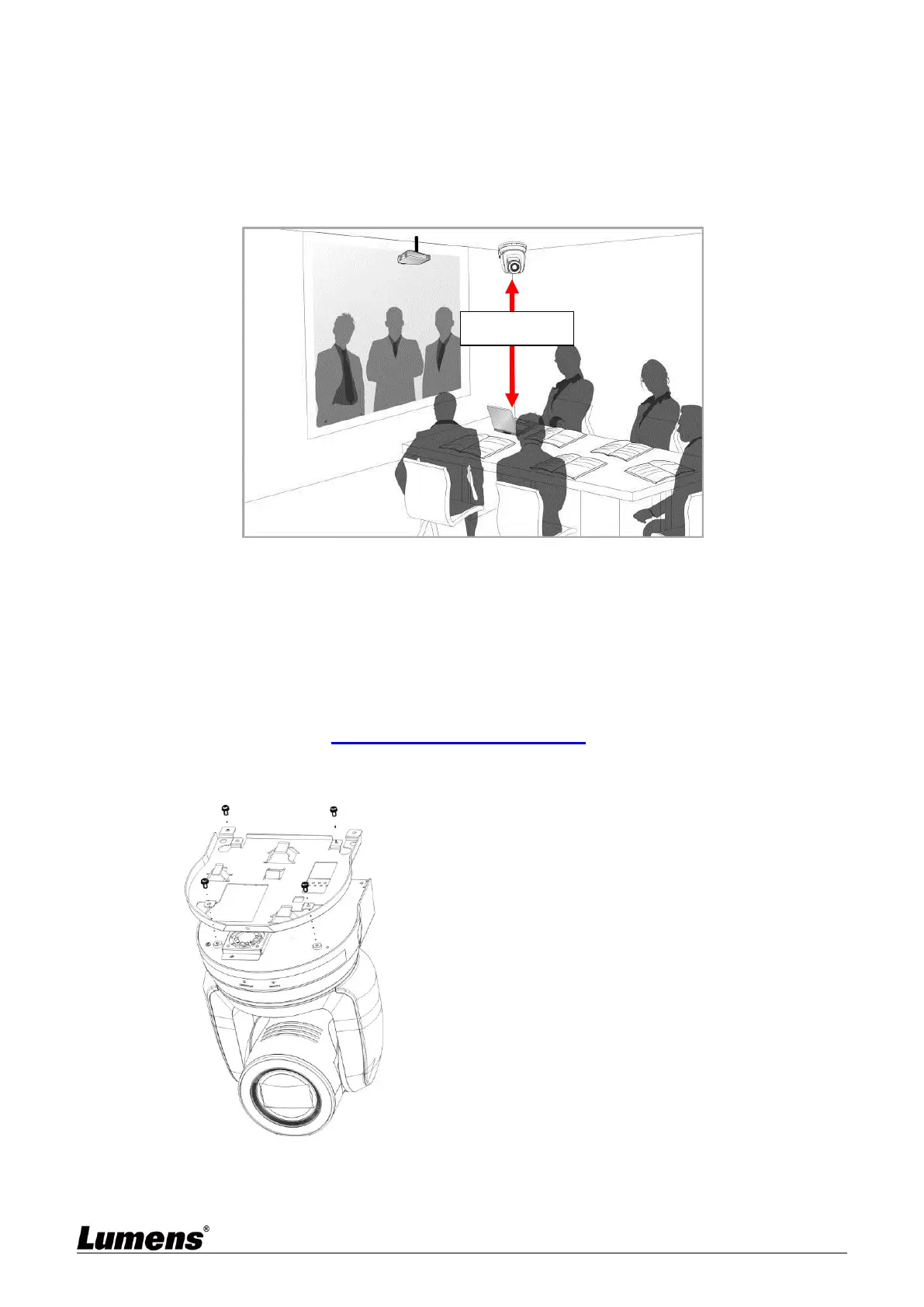

Before installation, please confirm the orientation of the machine relative to the
object to be captured
It is recommended that the machine should be set at a distance of more than 1.5
meter away from the object to be captured. Please adjust for a best distance
according to the magnification of the lens
The machine (including metal plates) is weighed at about 2.5 kg. If it is to be installed
on the ceiling, please use the hanger that has obtained UL security approval to
prevent the machine from falling down.
Please check whether the camera is installed securely on a regular basis
3.2.2.6 Installation steps
1. Please adjust resolution on DIP switch at first
Please refer to Chapter 6 DIP Switch Setting for the relevant descriptions on
DIP switch
2. Fix the metal plate A on the machine base with 4 M3 silver screws
3. Lock the metal plate B on ceiling mounted hanger
<Note> (1) Please use the hanger that has obtained UL security approval
(2) Please reserve the hole for the connecting wires of the camera
