Lumens VC-A51P User Manual

English - 3

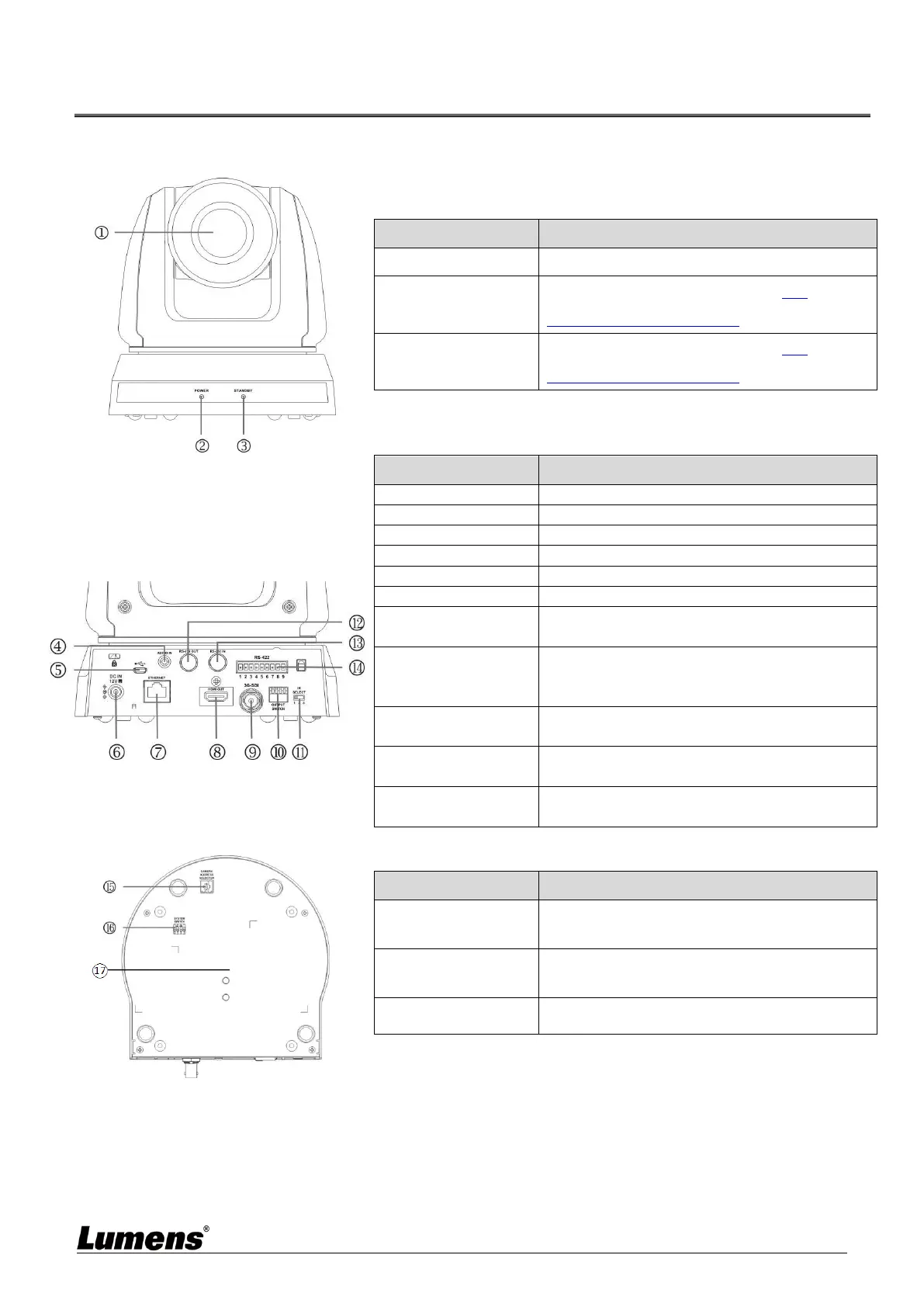

Chapter 2 Function Introduction
2.1 I/O functions Introduction
Item
Function Descriptions
1. Camera lens
HD camera lens
2. Power LED
Display the status, please refer to 2.2
Description of LED indicator
3. Standby LED
Display the status, please refer to 2.2
Description of LED indicator
Item
Function Descriptions
4. Audio In
Support Line In/Mic In
5. Micro USB Port
For Firmware Update
6. Power input
AC power supply connecting port
7. Ethernet port
Support IEEE 802.3at PoE + power supply
8. HDMI output
HDMI output (support Audio output)
9. 3G-SDI
3G-SDI output
10. OUTPUT Switch
Adjust the resolution setting. The default is
1920 x 1080/60p
11. IR SELECT
Remote control ID setting
It can be controlled only when it corresponds to
the Camera Select on the remote control
12. RS-232 output
RS-232 output port, at most 7 cameras can be
connected in a serial connection
13. RS-232 input
RS-232 input port, at most 7 cameras can be
connected in a serial connection
14. RS-422
connecting
RS-422 connecting port, at most 7 cameras
can be connected in a serial connection
Item
Function Descriptions
15. Camera Address
Selectors
Camera ID Setting
16. SYSTEM Switch
System DIP Setting
17. Tripod lock hole
The camera is mounted on a (specification)
1/4” - 20 UNC tripod
