English - 12

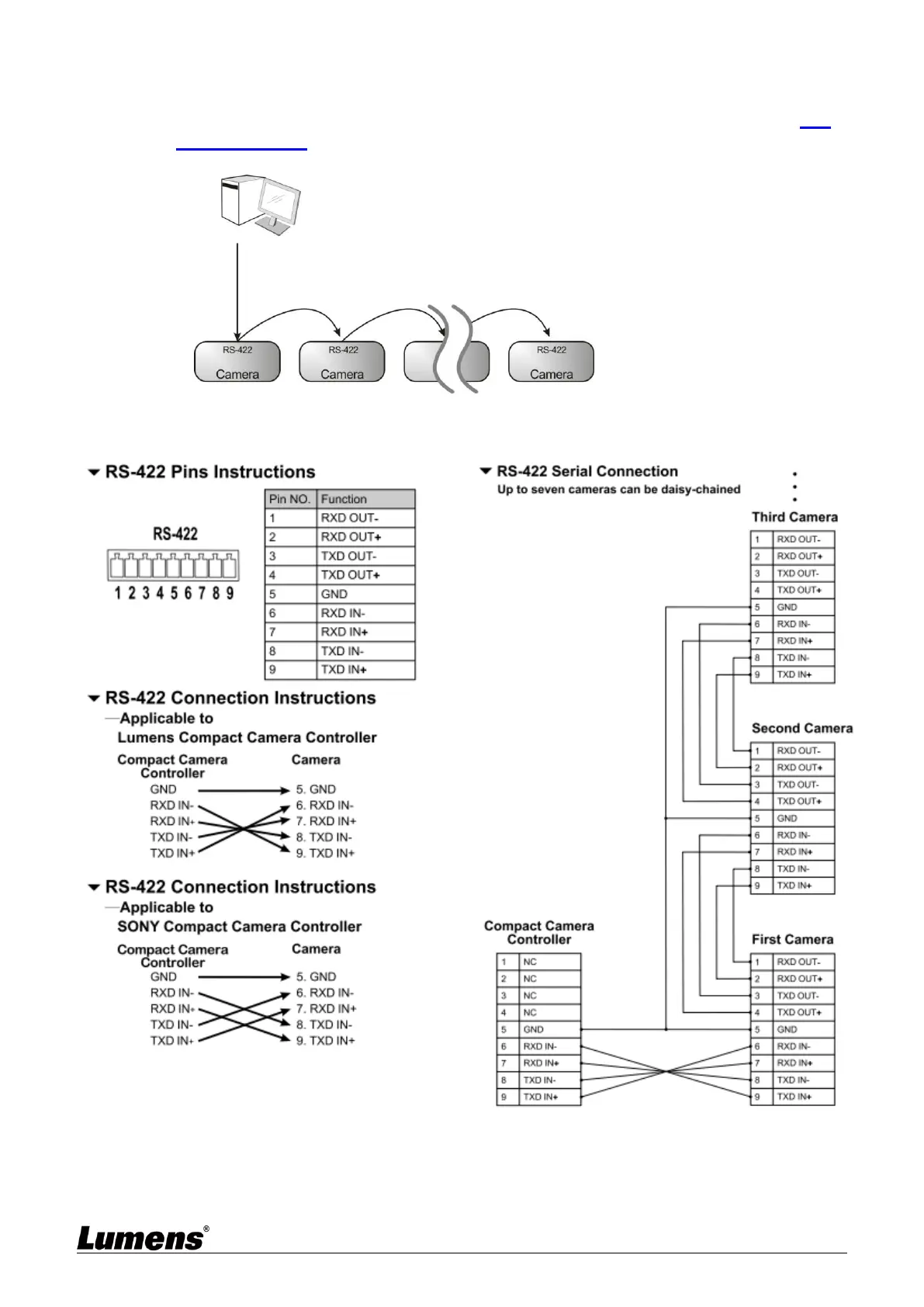

3.3.2 RS-422 connection (at most 7 Lumens cameras can be connected)
Only one of RS-422/RS-232 can be selected for control, please refer to 6.4
System Switch, DIP1 setting
RS-422 pins definition instructions
