GROUP/VLAN ADVANCED SETTINGS

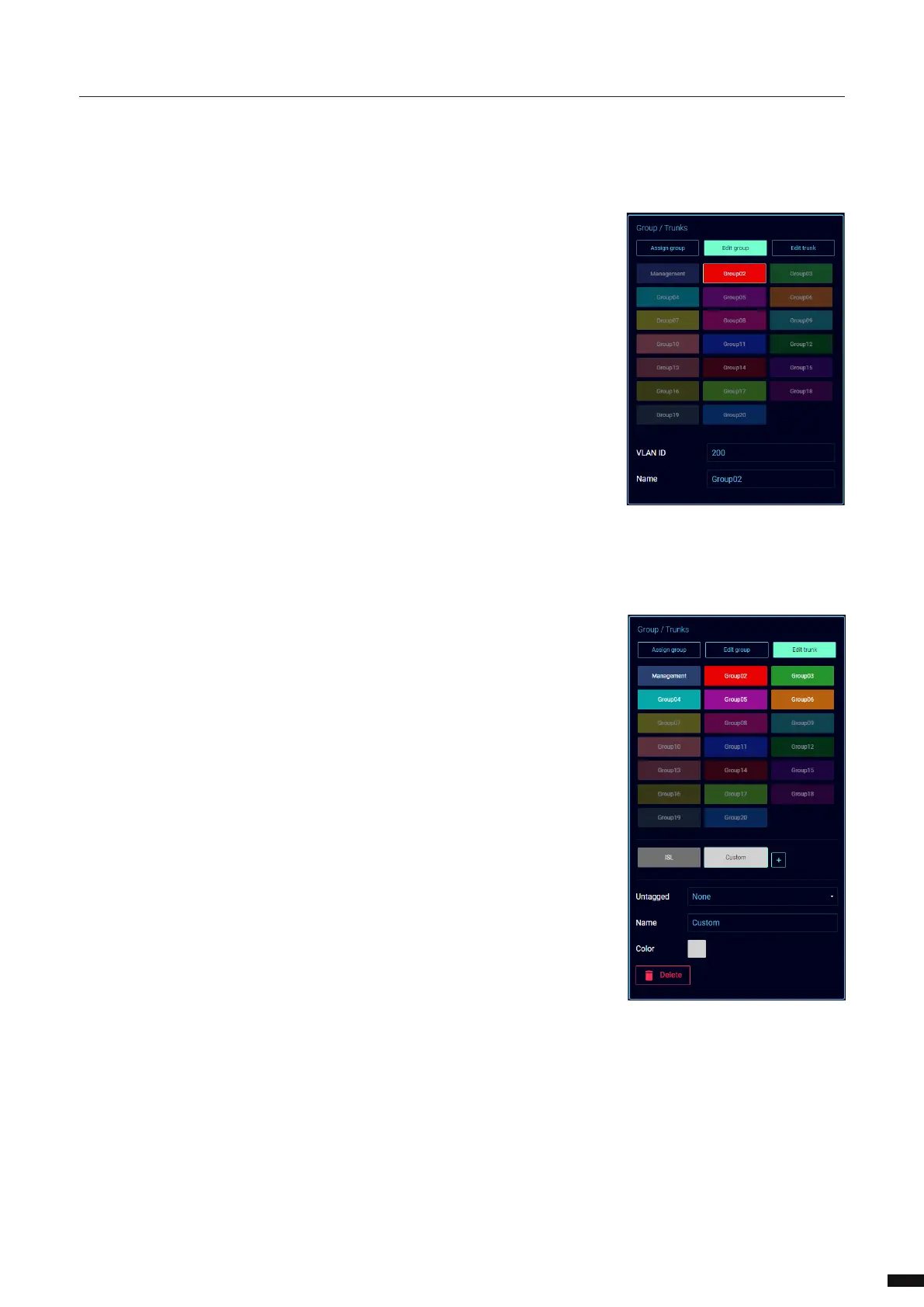

To change the settings for a group, click on the Edit group option in the Group/Trunks section.
With a group selected you can:
Change the VLAN ID.
Change the name for ease of identication.
ADD OR EDIT A TRUNK
To Add or Edit a Trunk, click the Edit Trunk option in the top right of the Group/Trunks section.
To Add a custom Trunk:
Click the + to add a trunk.
Give the new trunk a name in the name eld.
Assign a colour to the trunk by clicking on the coloured square.
After selecting the colour, click anywhere outside the colour picker
window to close it.
Click on all the groups/VLANs you wish to include in this trunk.
If needed, use the dropdown menu for Untagged to select which
group should be untagged on the trunk. An untagged port connects
to hosts. The host is unaware of any VLAN conguration.
Your custom trunk is now available in the Assign group tab to be
assigned to ETH1 or ETH2.
