42
OPERATORS MANUAL

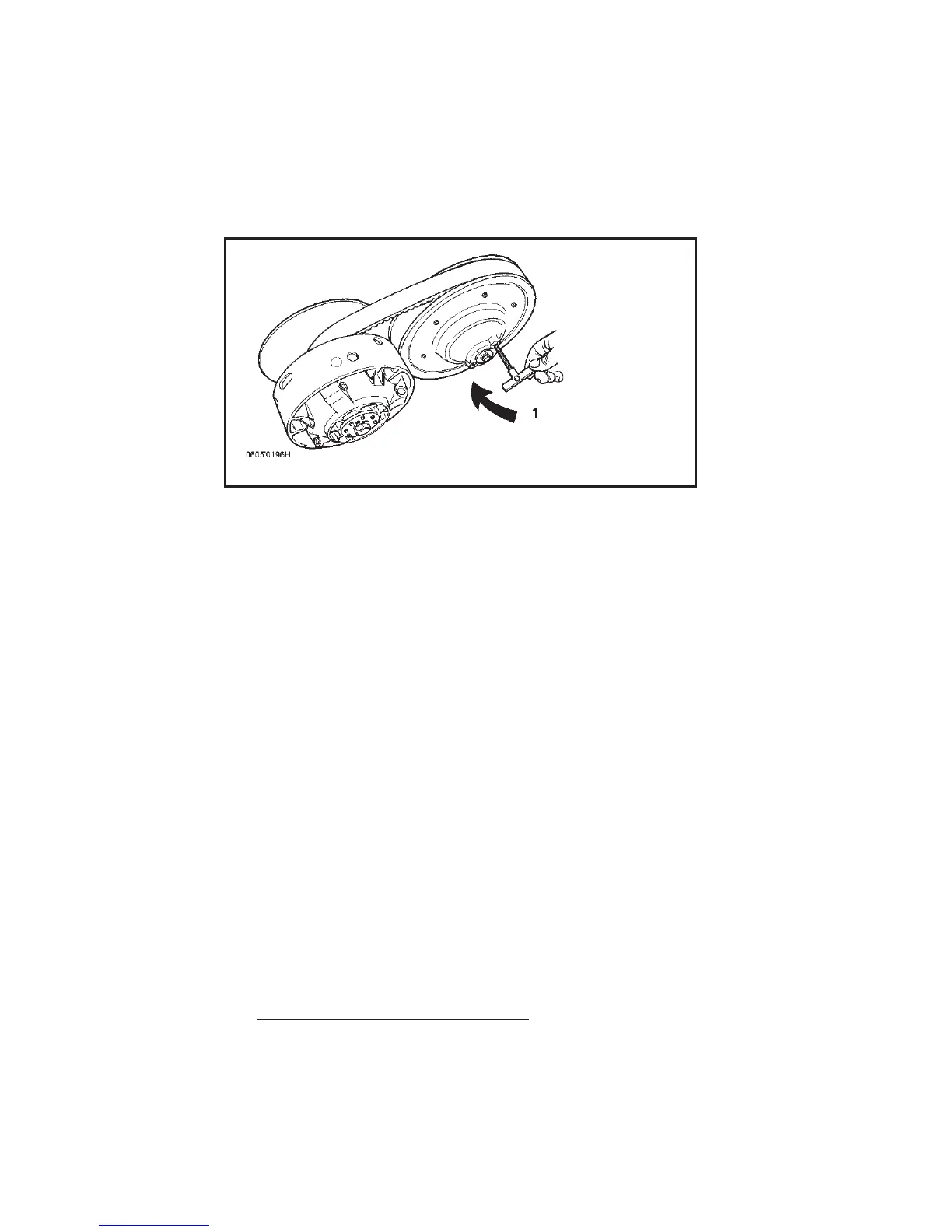

DRIVE PULLEY, ADJUST AND SERVICE
The function of variators, especially clutch ones, is very important,
because malfunction of variators strongly decrease the performance
of the snowmobile.The maintenance of variators means cleaning
and/or lubrication. The bearing of variators is partly by steel-, teflon-
and fiber
Attention! Variators bearings must not be lubricated!
IBC-Clutch
Function of the clutch is based on the sliding of the weight blocks
(3 pcs) towards the adjusting cup. The clutch is cleaned off belt
dust and off other foreign matters according to the service
instructions.Under very hard circumstances even more often. Service
and maintenance of the IBC-clutch must be carried out by an
authorized LYNX dealer/work shop.
Lock pin
