OPERATORS MANUAL
DRIVEN PULLEY, ADJUST AND SERVICE
IBC- and BOMBARDIER-driven pulley
On service the variator will be cleaned and its function will be
checked. Once on the driving season it is necassary to have a
thorough checking; variator will be checked part by part and if
necassary the parts will be changed. Inspection and cleaning
must be performed by an authorised dealer.
With the three nuts in the clutch it is possible to adjust
tension of the belt
belt distance up to the outer clutch circle.
Loosen just enough to
permit rotating of calibrate
screw.

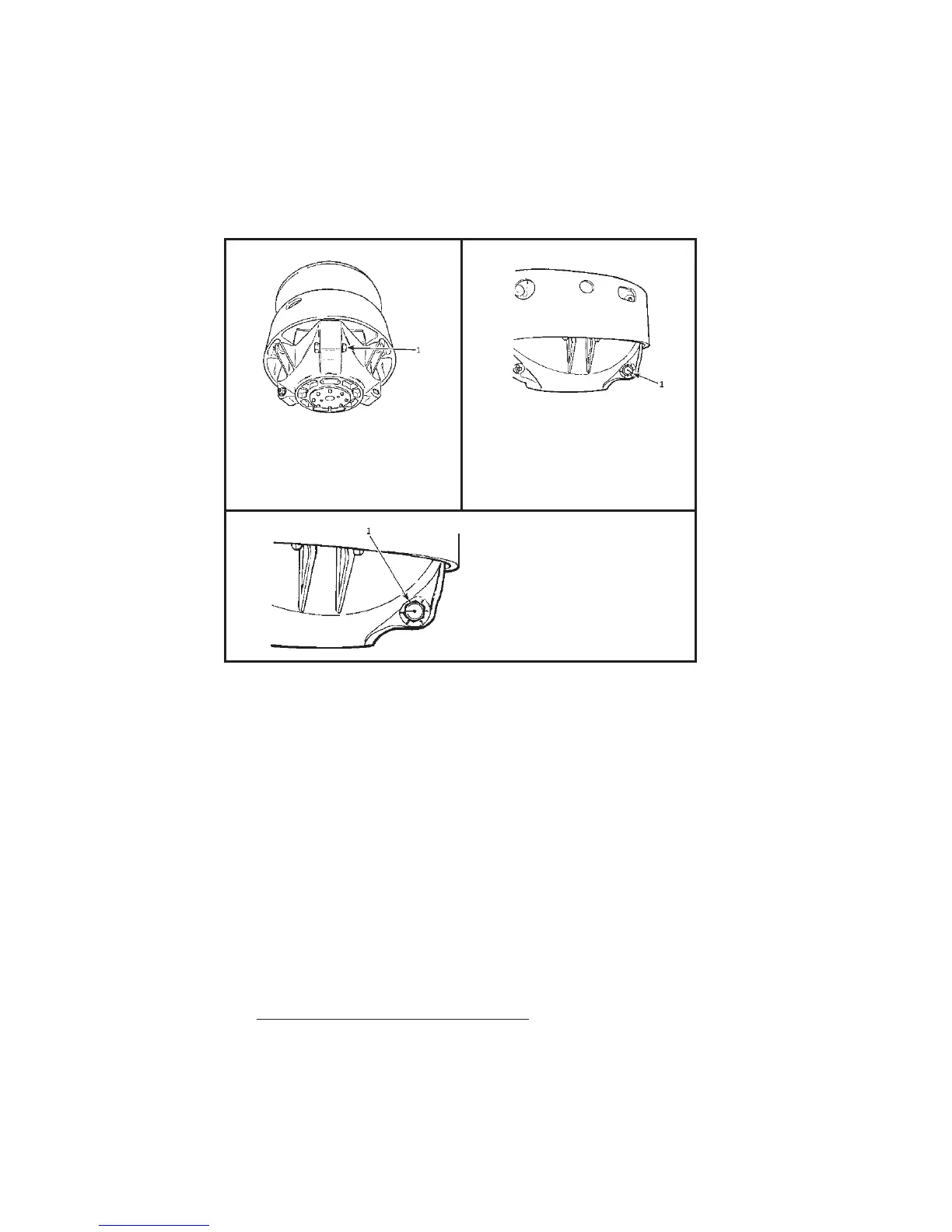

Calibration screw has a
notch on top of its head.
TRA-clutch
Position 1 (not numbered).
