OPERATORS MANUAL
Adjusting of slide rail
G-Touring, XR 500 F, XR 500 LC, Touring 400 F, Touring 500 F,
Ranger 2000, Touring 500 LC

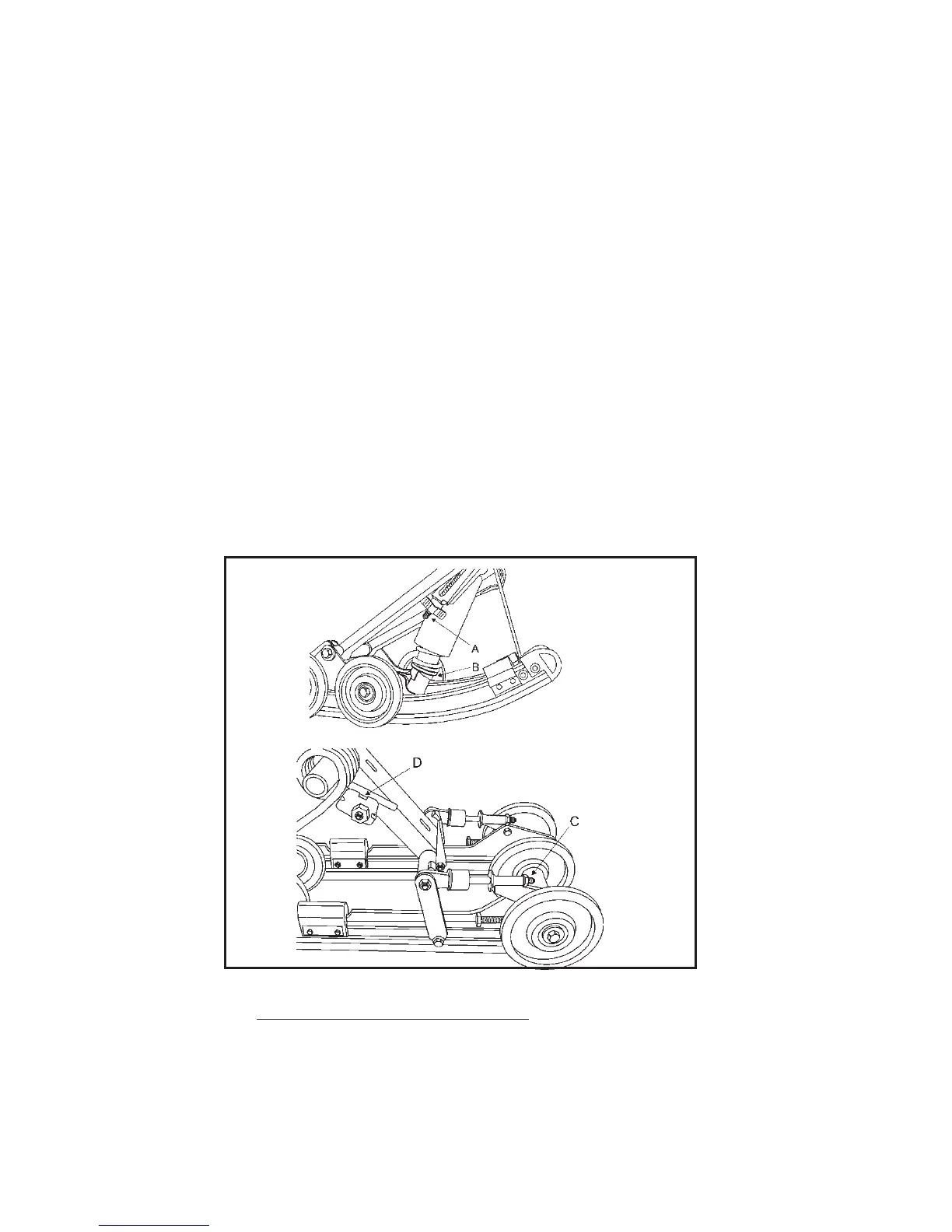

Standard adjustment
A ) Welded front arm, stopper belt: 40 mm screw sprial must be
out
B) Welded front arm, spring;
G-Touring 700/600: position 5 (max. tension)
G-Touring 500: position 3 (middle tension)
C) Anti-Transfer adjustment: the screw must be tightened so that
15 mm screw sprial must be out
D) Welded rear arm, spring: position 3.
