M2I TOPRW - 4.3 TOPRW1000 WD

M2I Corporation Industrial HMI Touch Panel HW Installation Manual
M2I Corporation
M2I Bldg, 35-11, Jeonpa-ro 24beon-gil, Manan-gu, Anyang-si, Gyeonggi-do, 430-857, Korea. Tel :+82-70-465-3366,Fax:+82-31-465-3355 www.m2i.co.kr
13 / 23
4.3 TOPRW1000WD

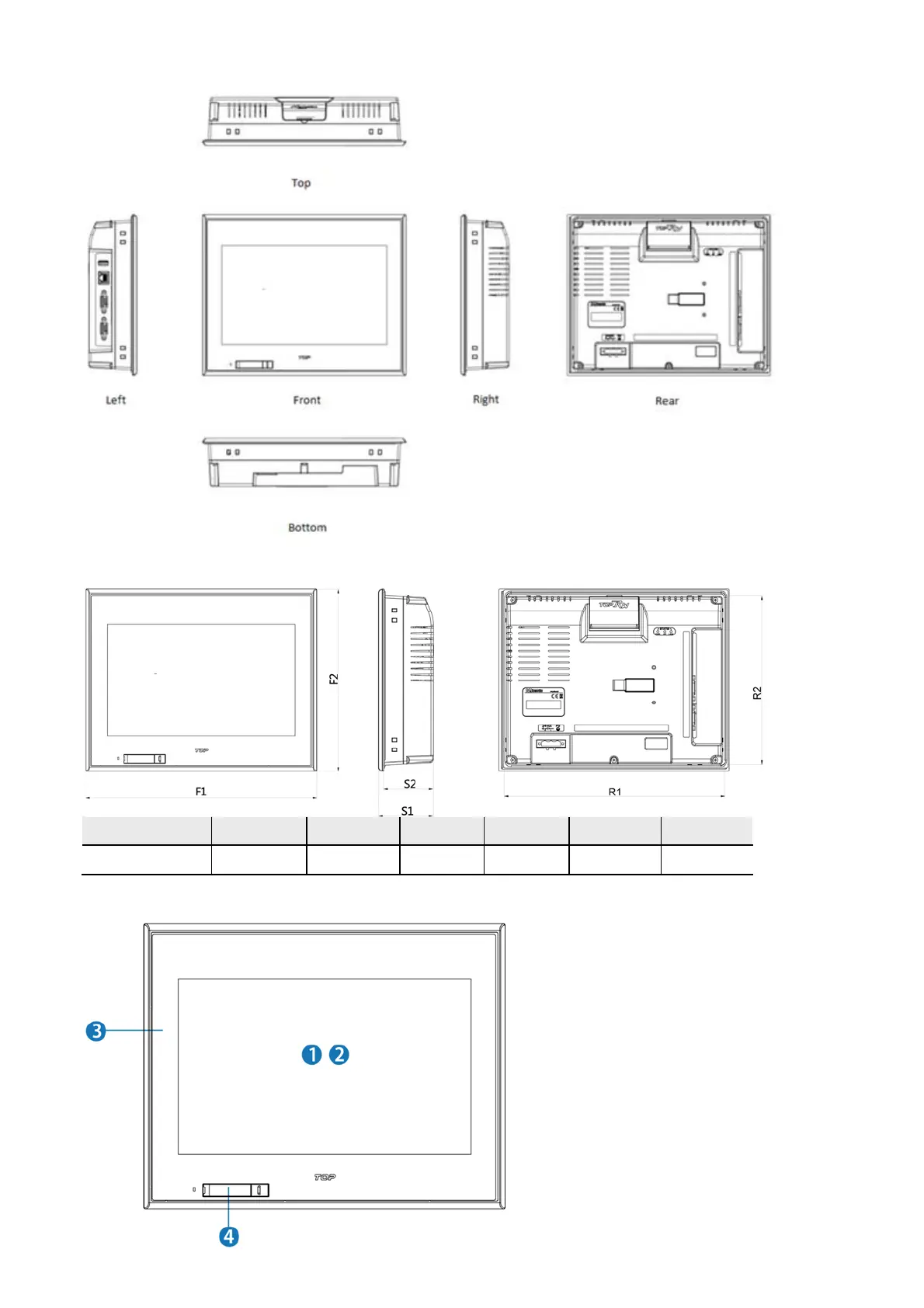

4.3.1 External Dimension
Model F1(mm) F2(mm) S1 (mm) S2 (mm) R1(mm) R2(mm)
TOPRW1000WD 274 216 64.7 58.7 260 202
4.3.2 Front Part Names and Specifications
