■ Wiring Precautions
Be sure the wiring is done correctly by checking the product’s rated voltage and the terminal layout.
Incorrect wiring could result in fire, damage or malfunctions.
Tighten the terminal screw with the specified torque. If the screws of terminal are loose, It could result
in short circuit, fire, malfunctions. FG Terminal must be used a dedicated ground. Not doing so could
result in malfunctions.

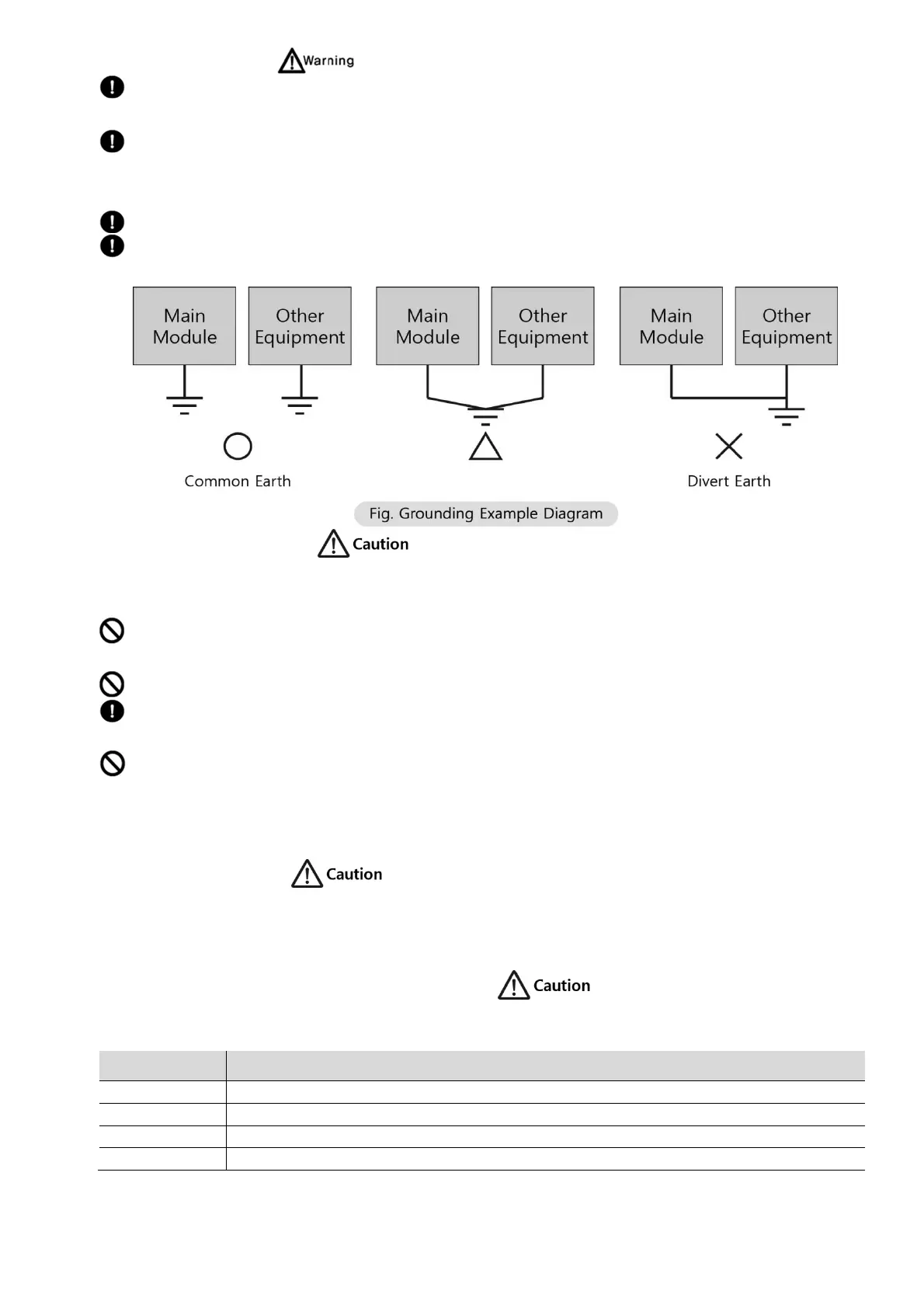

a. Grounding should be the Class 3 grounding. The cable for grounding should be more than 4㎟
b. grounding point be closed to the products and make short the distance to the ground cable if possible.
Please see below.
■ Installation Precautions
Do not install the location which exceeds allowed temperature. Product can be damaged or shorten the life.
Especially Install environment as below should be avoided.
Do not Install product to the place which the ambient temperature is out of limits, from 0℃ to 50℃ or on the
surface of control board which high pressure equipment is installed..
Do not install to the place where strong shock or vibration continuously have impacted on product.
The space between back of product and back of control board must be more than 100mm for maintenance
and ventilation.
In order to improve water retention and ventilation, the space between the back of the main body and
the console box should be 100mm or more, and install the cooling fan when installed in an enclosed
space
■ Disposal Precautions
When you dispose of product and battery, please treat it as industrial waste. It can create poisonous substances
or explosion.
■ Cell Type Battery Specifications and Exchange
Mounted on mainboard Model MS920SE Battery is not replaced by the user. If the battery has run out of service,
please contact our Customer Support Center for replacement and inspection.
Item Content
Battery Voltag
e
DC 3
V
Battery Model MS920SE (lithium
/
Recharg
e
able )
Battery lifetim
e
Permanent (In case of ambient temperature 25℃)
Batter
y
Discharg
e
Last about
7
days After turn it off
* Depending on the model specifications are subject to change .
■ All field-wiring connections to this unit shall be from Limited Voltage / Limited Current,
below 24 Vdc isolated secondary source with an output fuse, or Class 2
