SECTION 2 SAFETY

Form 169000 / 169040 9 Revision D

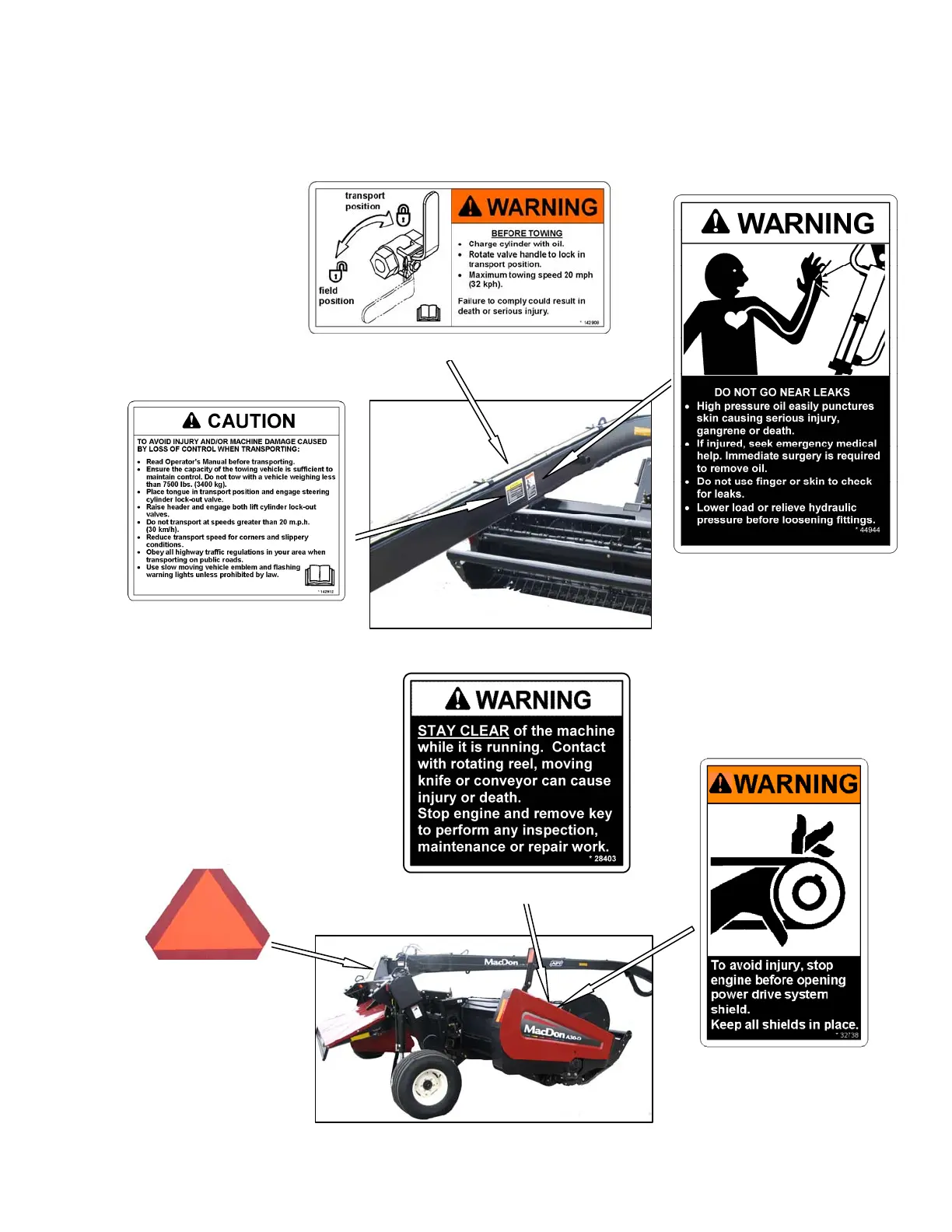

3-Panel Safety Sign Locations: Pull-Type

(cont’d)

#32738 - BOTH ENDS

#115148

#28403 - BOTH ENDS

#44944

#142912

#142908 - BACK-SIDE
