SECTION 2 SAFETY

Form 169000 / 169040 7 Revision D

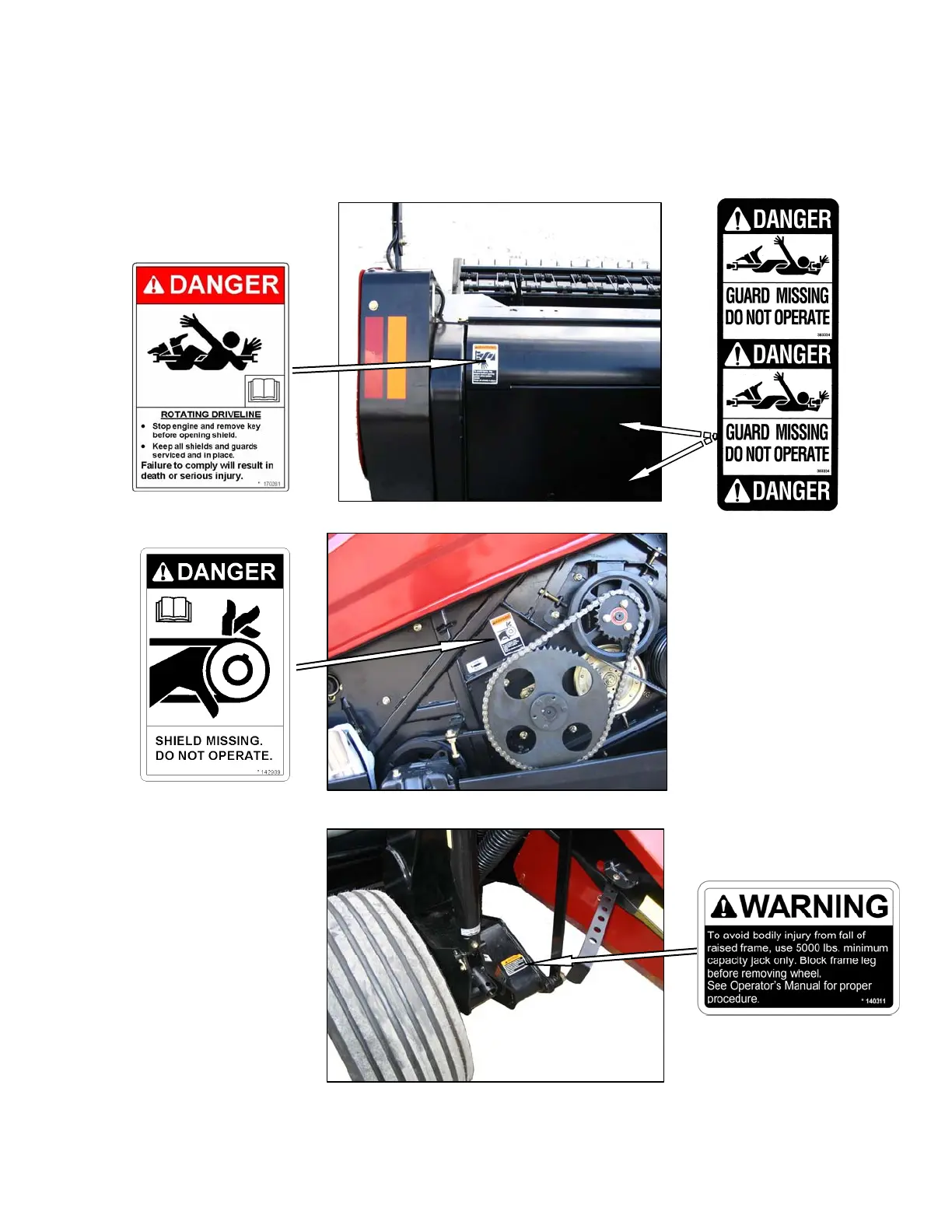

2.3.2 3-Panel Safety Sign Locations: Pull-

Type

#140311 - BOTH SIDES

#36651 - DRIVELINES

-#142909 - BOTH ENDS

#170281
