SECTION 6 OPERATION
Form 169000 / 169040 49 Revision D
6.7.2 A40-D Detachment
CAUTION
To prevent accidental movement of
windrower, place all controls in NEUTRAL or
in PARK, engage park brake (if applicable),
shut off engine, and remove key.
a. Move LH cab-forward platform to rear of
windrower.

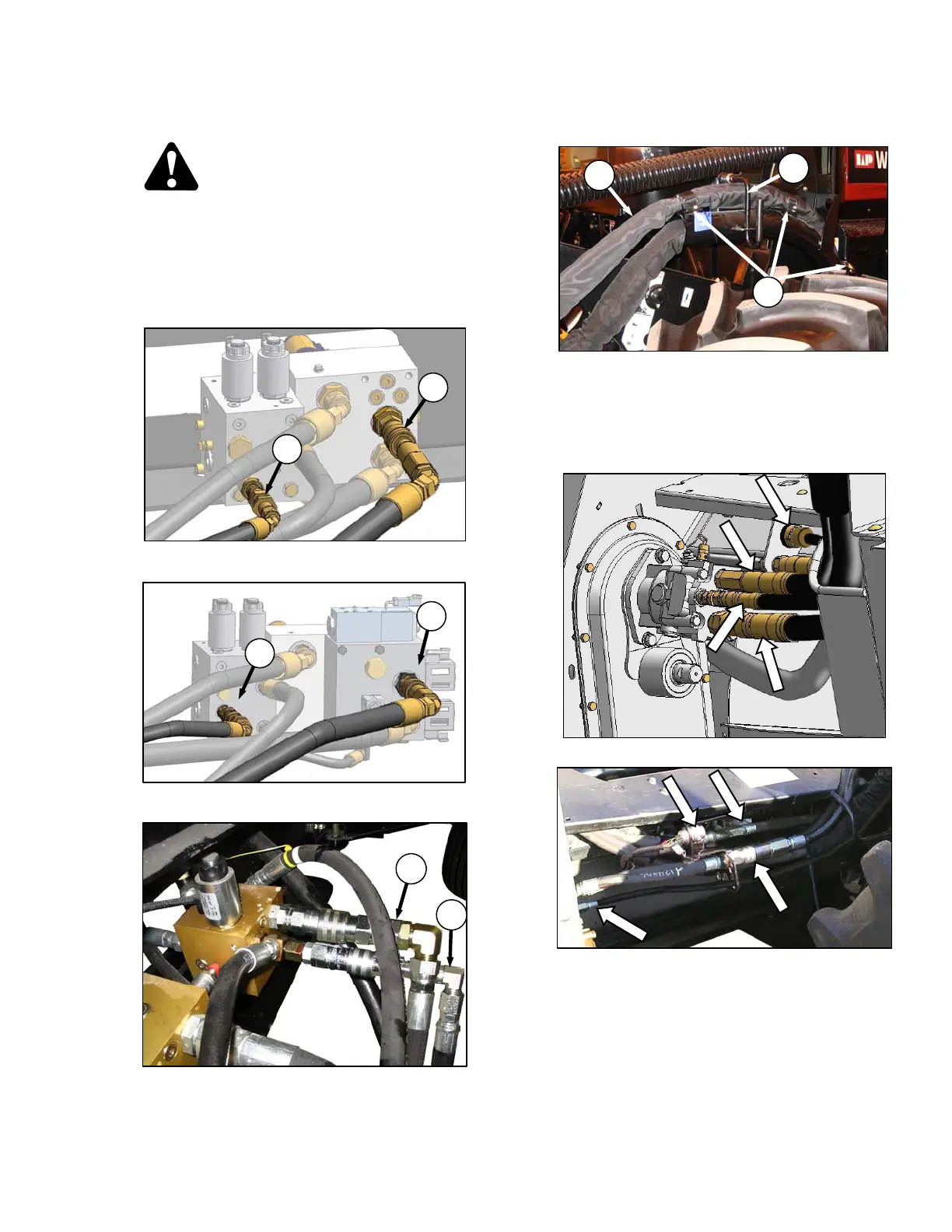

b. Disconnect the two hydraulic hoses (A) and (B)
or (C) and (D) from windrower valve(s).
c. Raise lever (E), and undo Velcro straps (F).
d. Move hose bundle (G) to store on header
walkway.
e. Install caps on connectors and hose ends (if
equipped).
f. At the header, disconnect electrical connector by
turning collar counter clockwise, and pulling
connector to disengage.
g. Disconnect hoses from hydraulic motor, and
auger and reel pressure hose.
(continued next page)
G
F
E
STANDARD HEADER
GRASS SEED HEADER
M150 WITHOUT REVERSER VALVE
M155, M200 SIMILAR
B
A
M150 WITH REVERSER VALVE
M155, M200 SIMILAR
B
A
M100, M105
C
D
