MacDon A30-D - Page 52

SECTION 6 OPERATION
Form 169000 / 169040 50 Revision D

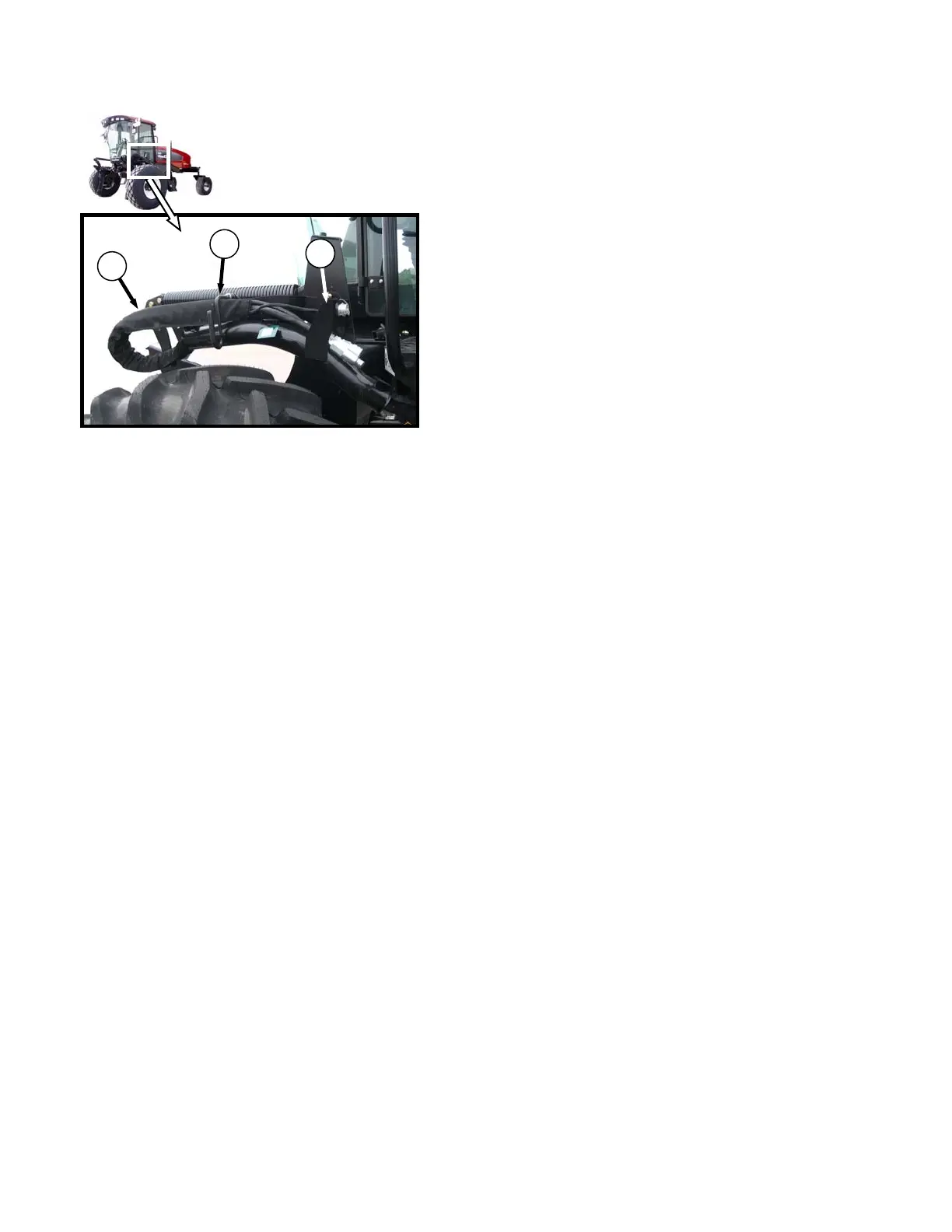

h. Move hose bundle (H) from header, and locate
on windrower LH side with hose ends in support
(J) and under lever (E).
i. Rotate lever (E) clockwise, and push to engage
bracket.
j. Locate electrical harness through support (J),
and attach cap to electrical connector.
k. Close driveline shield, and move windrower
platform to “closed” position.
l. Check to ensure hoses and electrical harness
clear tire.
m. Detach header from windrower. Refer to your
Self-Propelled Windrower Operator’s Manual for
procedures for mechanically detaching the
header from the self-propelled windrower.
