SECTION 2 SAFETY

Form 169000 / 169040 10 Revision D

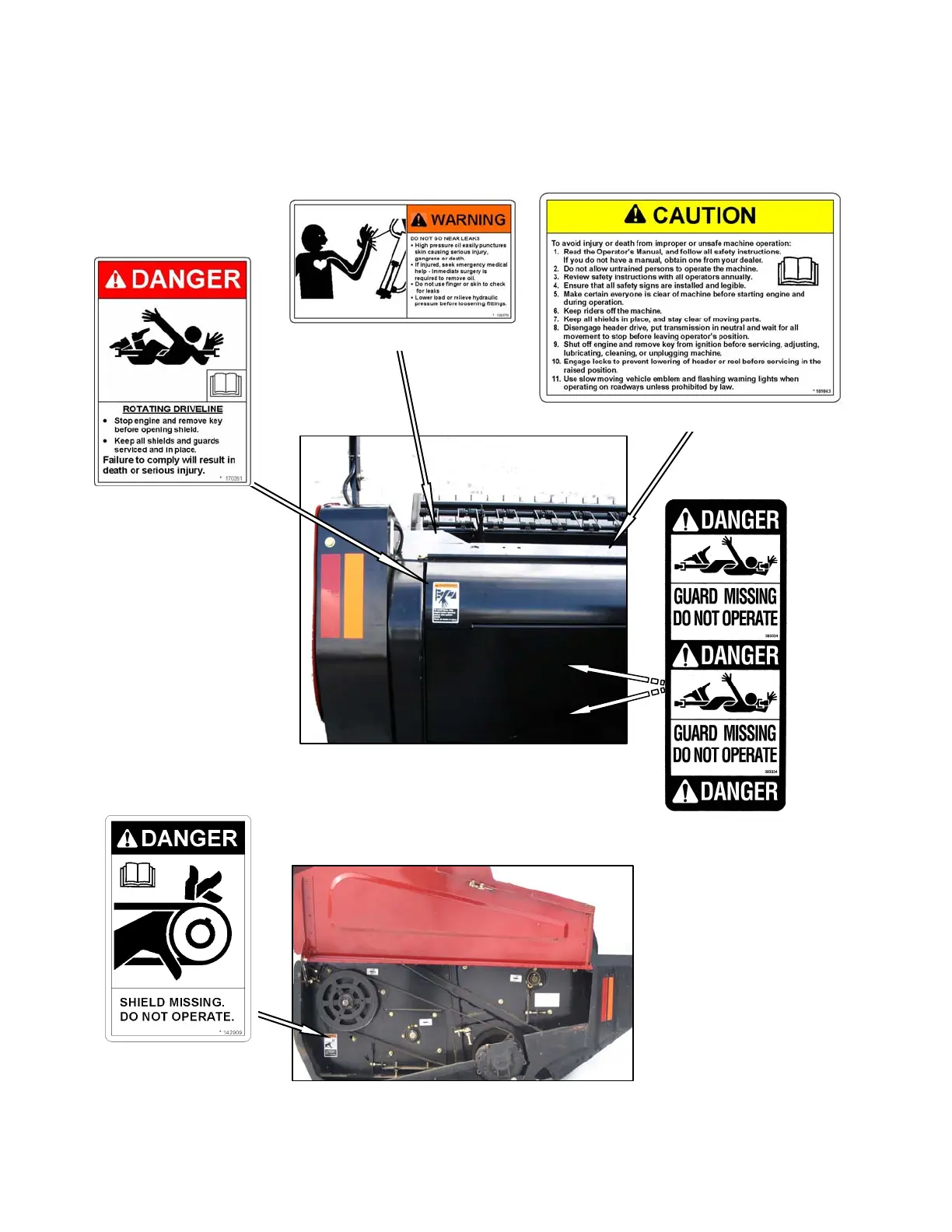

2.3.3 3-Panel Safety Sign Locations: Self-

Propelled

#142909

BOTH ENDS

#170281

#134070

#109843

#36651 - DRIVELINES
