SECTION 7 MAINTENANCE AND SERVICING
Form 169000 / 169040 132 Revision D

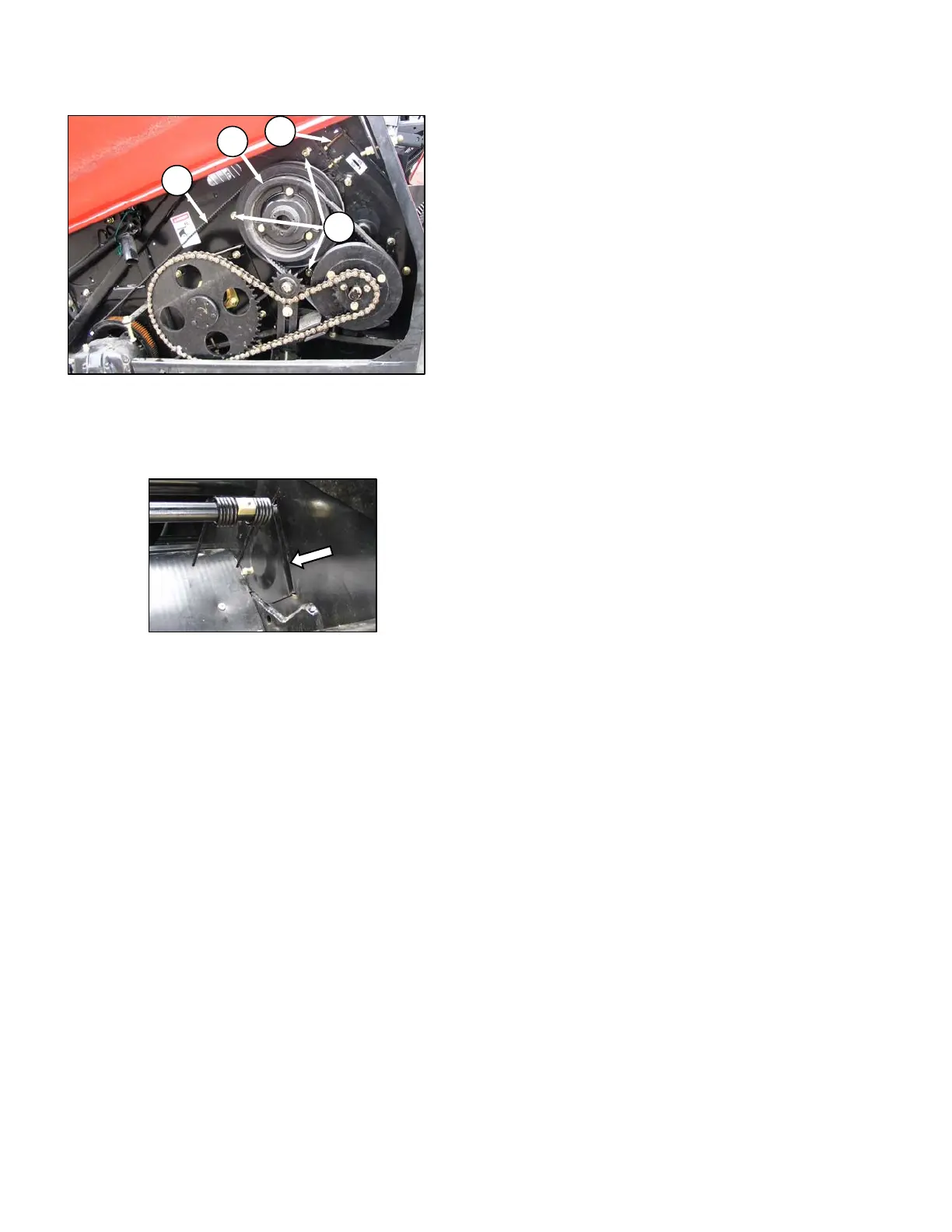

f. Loosen three nuts (B).
g. Loosen jam-nut on adjuster bolt (C), and turn
adjuster bolt (C) so that sickle drive belt (A) can
be slipped off pulley (D).
h. Remove bolt-in plate in LH endsheet at wobble
box.
i. Slip belt off wobble box pulley, and route belt
through this hole to remove it.
B
C
A
D
