SECTION 2 SAFETY

Form 169000 / 169040 13 Revision D

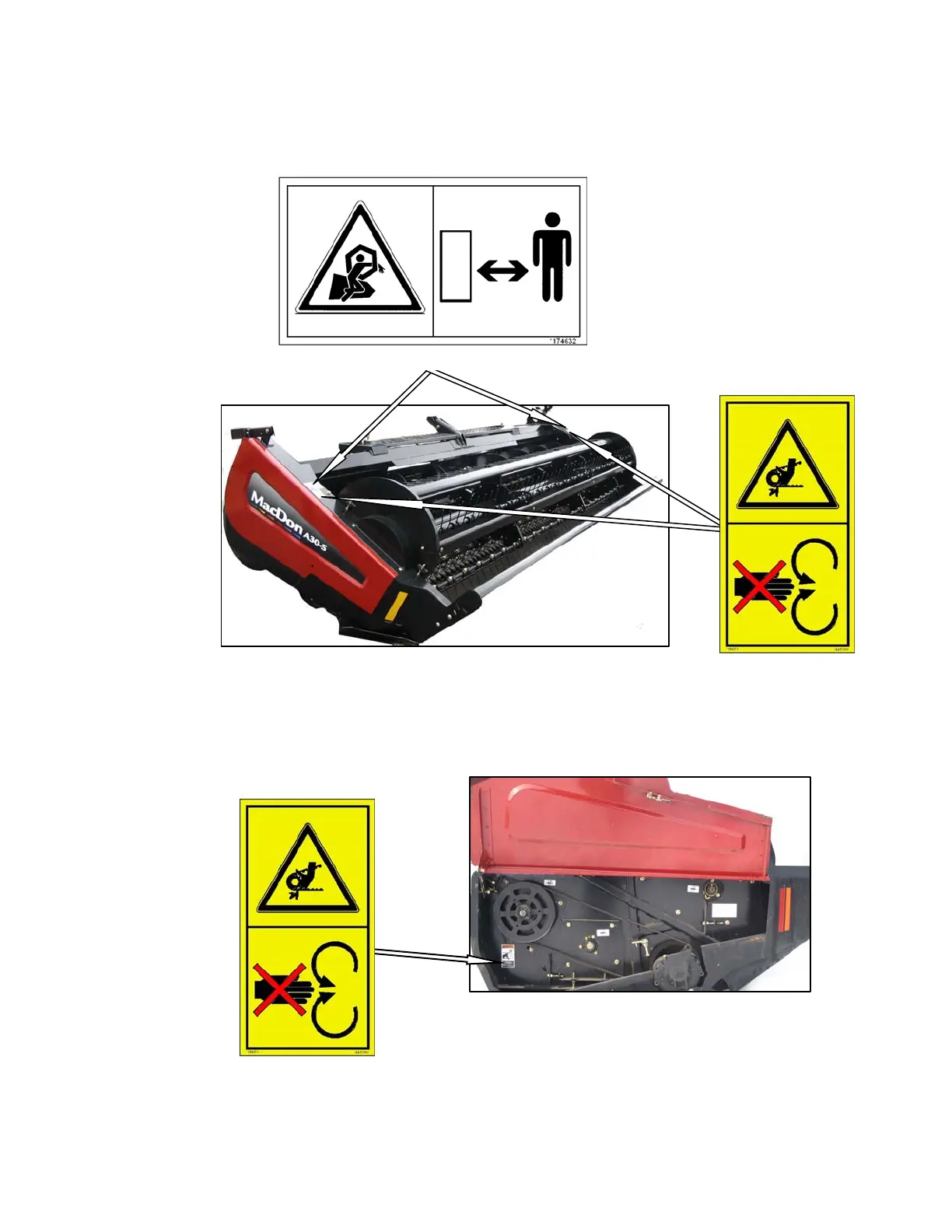

2-Panel Safety Sign Locations:

Self-Propelled (cont’d)

#174632

#184371 - BOTH ENDS

#184371
