SECTION 7 MAINTENANCE AND SERVICING
Form 169000 / 169040 153 Revision D

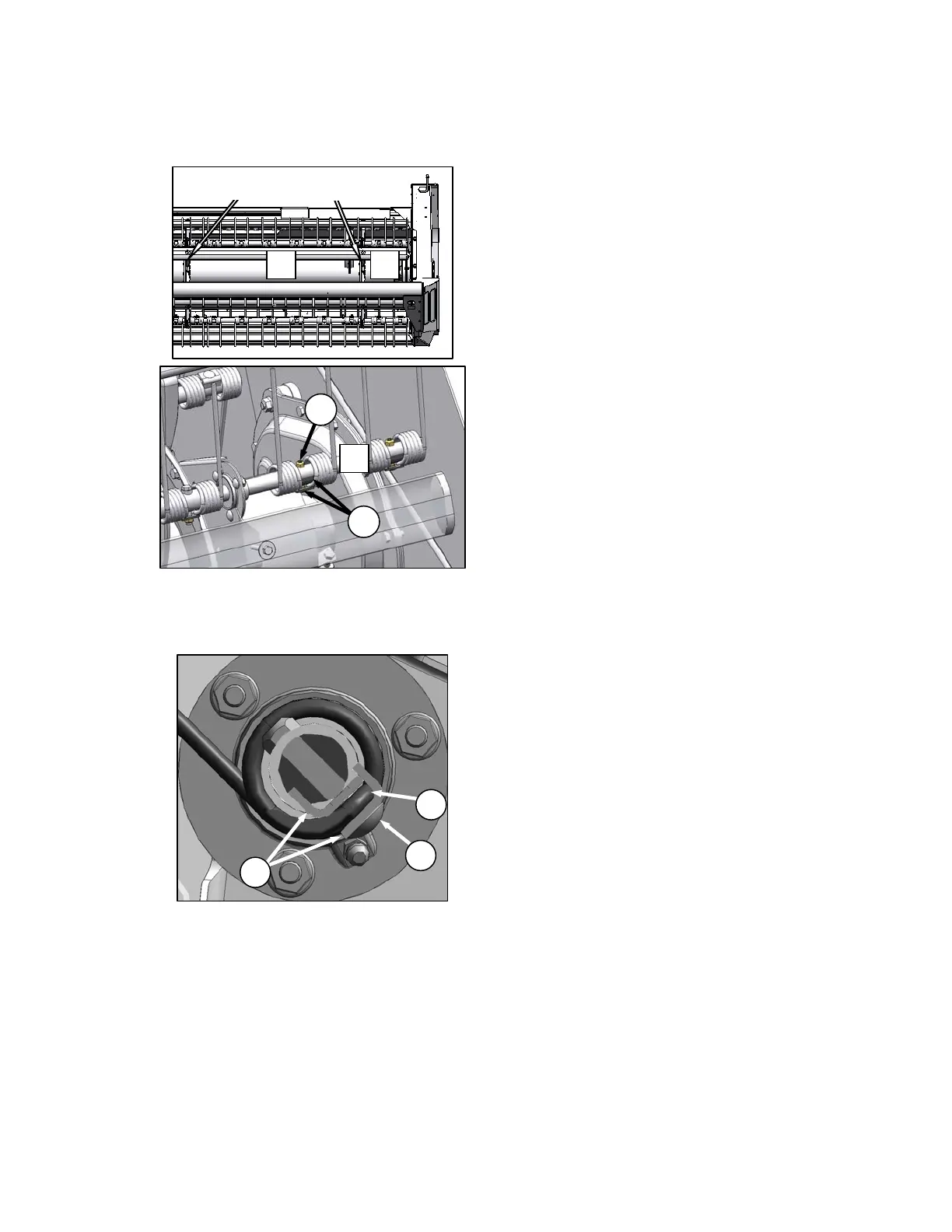

7.10.2.4 Tine Replacement: Tine Bar Extension -
Section Z
a. Remove bolt (F) and keepers (G) on tine to be
replaced, and slide tines off tine bar.
b. Install tines on tine bar, and secure with bolt (F)
and two keepers (G). Tine (H) must be clamped
between keepers (G). Install nut with flat side
against tine bar extension.
DISC #4
DISC #3
Z Y
DISC #4
F
G
Z
G
F
H
