SECTION 6 OPERATION
Form 169000 / 169040 56 Revision D

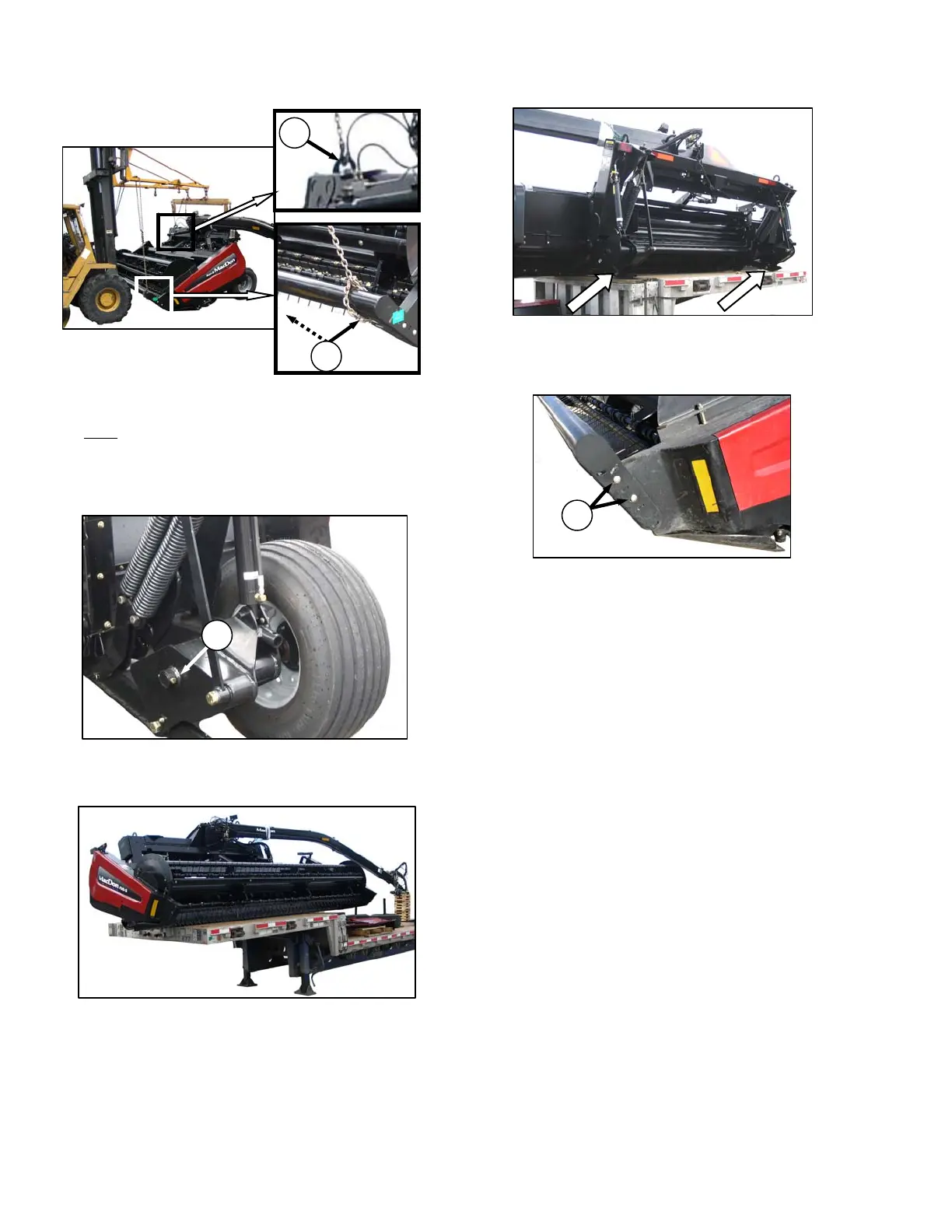

l. Attach a chain to each frame hook (K) and a
chain to each end of the lean bar at (L). Chain
must
pass through hole at end of lean bar.
m. Position forklift from either front or back of
mower conditioner, and lift slightly off the
ground.
n. Remove the wheels by removing bolt (M), and
pulling wheel/axle assembly from frame.
o. Lift mower conditioner, and back the flatbed
trailer under the unit. The mower conditioner
can be positioned with the APT towards the front
or rear of the flatbed.
p. Lower mower conditioner onto flatbed, so that its
weight rests on the frame and sloped edge of
header end panels, or cutterbar as shown.
q. Remove four bolts (N), and remove the lean bar
to minimize load width. Secure lean bar to the
flatbed.
r. Tie the unit and the end of the APT down
securely.
