SECTION 6 OPERATION
Form 169000 / 169040 76 Revision D

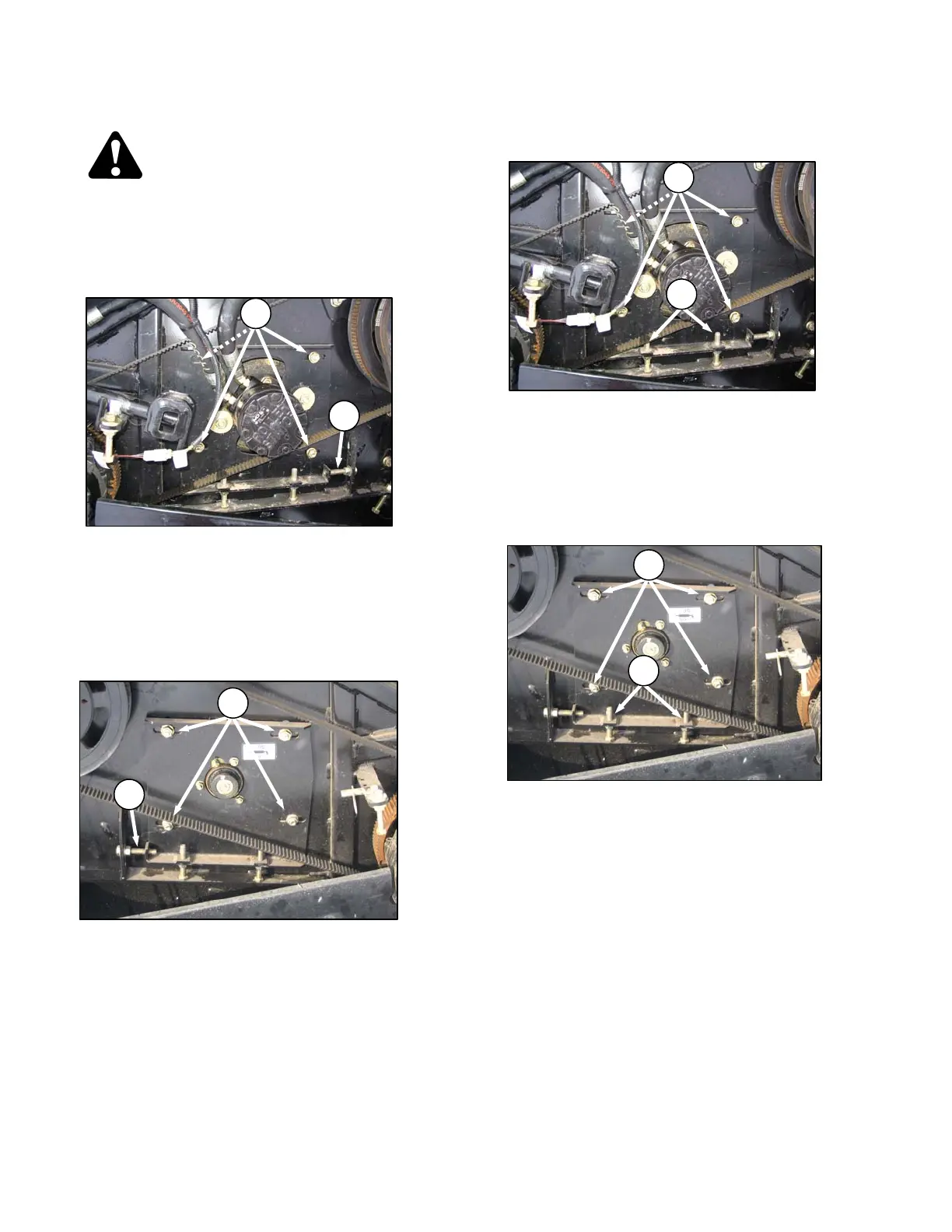

6.17.4.5 Auger Fore-Aft Adjustment: A40-D
CAUTION
To prevent accidental movement of
windrower, place all controls in NEUTRAL or
in PARK, engage park brake (if applicable),
shut off engine, and remove key.
a. Open LH endshield.
b. Loosen four nuts (A).
c. Loosen jam-nut on adjuster bolt (B), and turn
bolt (B) to adjust auger fore-aft position.
d. Tighten jam-nut.
e. Tighten nuts (A).
f. Open RH endshield.
g. Loosen four nuts (C).
h. Loosen jam-nut on adjuster bolt (D), and turn
bolt (D) to adjust auger fore-aft position.
i. Tighten jam-nut.
j. Tighten nuts (C).
k. Close shields before engaging header.
6.17.4.6 Auger Vertical Adjustment: A40-D
a. Open LH endshield.
b. Loosen four nuts (E).
c. Loosen jam-nuts on adjuster bolts (F), and turn
bolts (B) to adjust auger “vertical” position.
d. Tighten jam-nuts.
e. Tighten nuts (E).
f. Open RH endshield.
g. Loosen four nuts (G).
h. Loosen jam-nuts on adjuster bolts (H), and turn
bolts (H) to adjust auger “vertical” position.
i. Tighten jam-nuts.
j. Tighten nuts (G).
k. Close shields before engaging header.
D
C
B
A
E
F
G
H
