6.17.5.2 Reel Vertical Position: A30-S, A30-D
CAUTION
To prevent accidental movement of
windrower, place all controls in NEUTRAL or
in PARK, engage park brake (if applicable),
shut off engine, and remove key.
a. Open LH endshield.

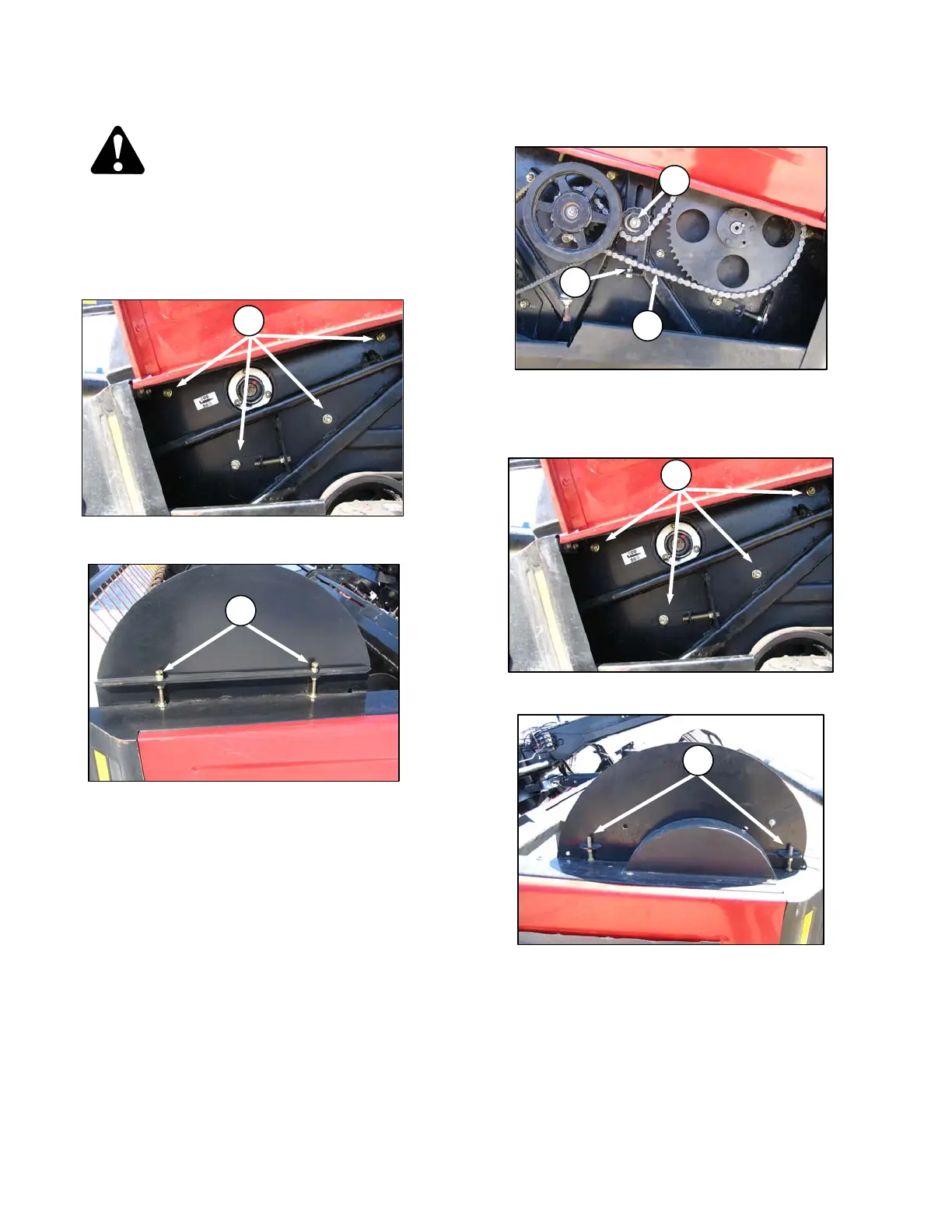

b. Loosen four nuts (A).
c. Loosen jam-nuts on adjuster bolts (B), and turn
bolts (B) to raise or lower reel.
NOTE
Adjustment at forward adjuster bolt
should be 0.47 in. (12 mm) lower than at
rear adjuster bolt.
d. Tighten jam-nuts and nuts (A).
e. Open RH endshield.
f. Loosen reel drive chain (C) as follows:
1. Loosen nut (D) on sprocket.
2. Loosen jam-nut on adjuster bolt (E), and
turn adjuster bolt (E) to loosen chain.
g. Loosen four nuts (F).
h. Loosen jam-nuts on adjuster bolts (G), and turn
adjuster bolts to raise or lower reel.
NOTE
Adjustment at forward adjuster bolt
should be 0.47 in. (12 mm) lower than at
rear adjuster bolt.
i. Tighten jam-nuts and four nuts (F).
