WINDROWER OPERATION
Form 169017 / 169087 / 169095 69 Revision C
g. Remove pins (D) from lower end of lift linkages.
NOTE
Pins (D) are also used to secure weight box
to windrower linkage.

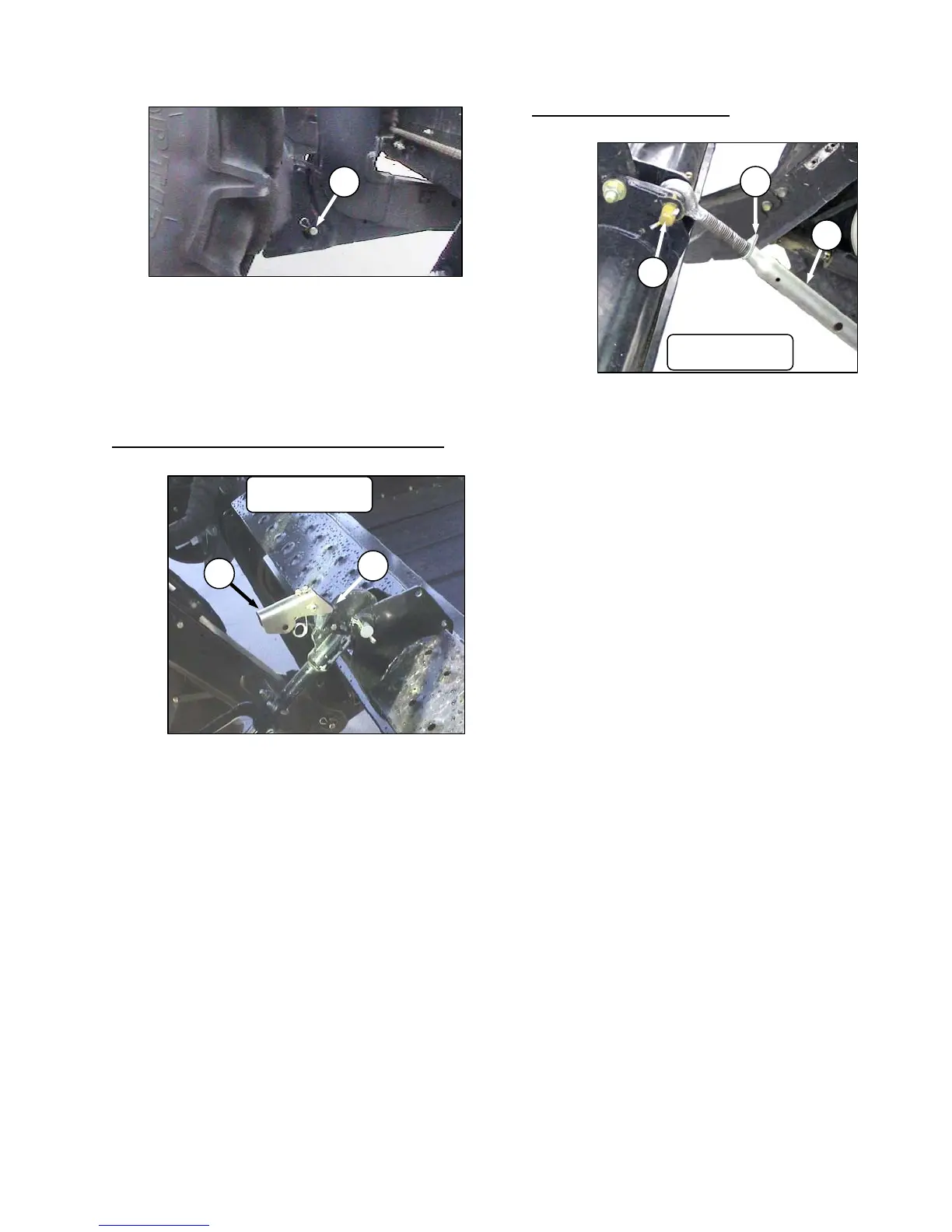

h. Disconnect the center-link as follows:
HYDRAULIC LINK - M200 STD, M150 OPTION
1. Pull up on latch (E), and locate latch into
notch (F) on top of hook.
2. Release the safety lock on the header lift
cylinders.
3. Lower header down onto the transport wheels.
4. Disengage the top link from the header. Use
the header tilt switch to release load on the
cylinder if necessary.
NOTE
If optional self-alignment kit is installed, the
top link can be raised or lowered using the
Reel “UP” and “DOWN” buttons on the
GSL.
MECHANICAL LINK - M150
1. Loosen nut (G), and rotate barrel (H) to relieve
load on link.
2. Remove cotter pin on pin (J), and remove pin
to disconnect from windrower. Reinstall pin in
header.
i. Back windrower away from header.
(continued next page)
J
H
G
D60 SHOWN
D60 SHOWN
E
F
D
To Next Page
