UNLOADING AND ASSEMBLY
Form 169018 23 Revision C

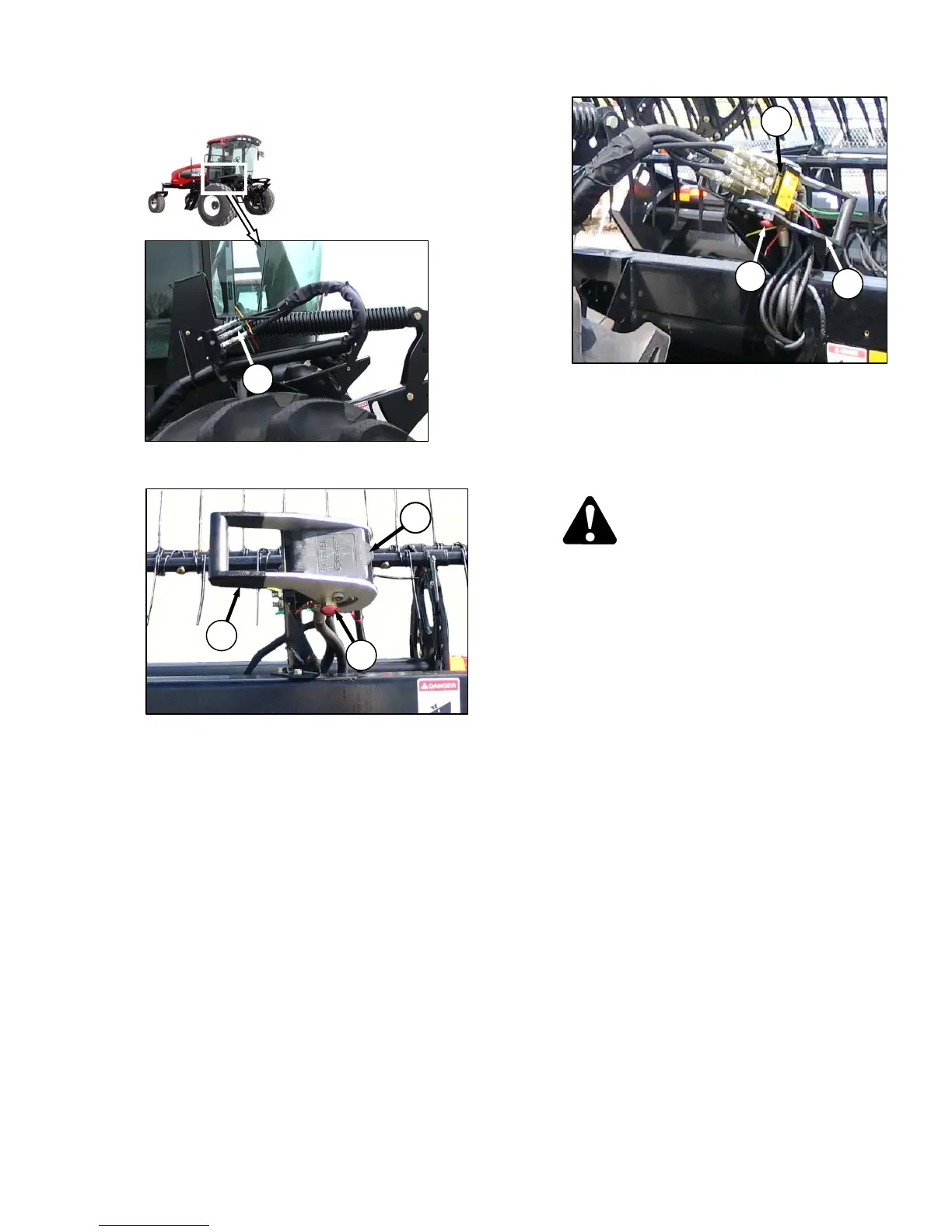

s. Connect reel hydraulics (Q) as follows:
1. Check connectors, and clean if required.
2. Open cover (R) on header receptacle.
3. Push in lock button (S), and pull handle (T) to
“half open” position.
4. Remove hose bundle with multi-coupler (Q)
from tractor, position onto header receptacle,
and push handle (T) to engage pins on
connector.
5. Push handle away from hoses until lock
button (S) snaps out.
CAUTION
Check to be sure all bystanders have cleared
the area.
t. Start engine, and raise and lower header and reel
a few times, to allow trapped air to pass back to
the reservoir.
