MacDon R116 - Tall Crop Divider Option; Removing Tall Crop Divider

OPERATION
3. Remove three bolts (A), and remove deflector (B).
4. Reinstall three bolts (A).
5. Repeat for opposite side.
6. Close cutterbar doors. Refer to 3.3.3 Closing Cutterba r
Doors, page 38.

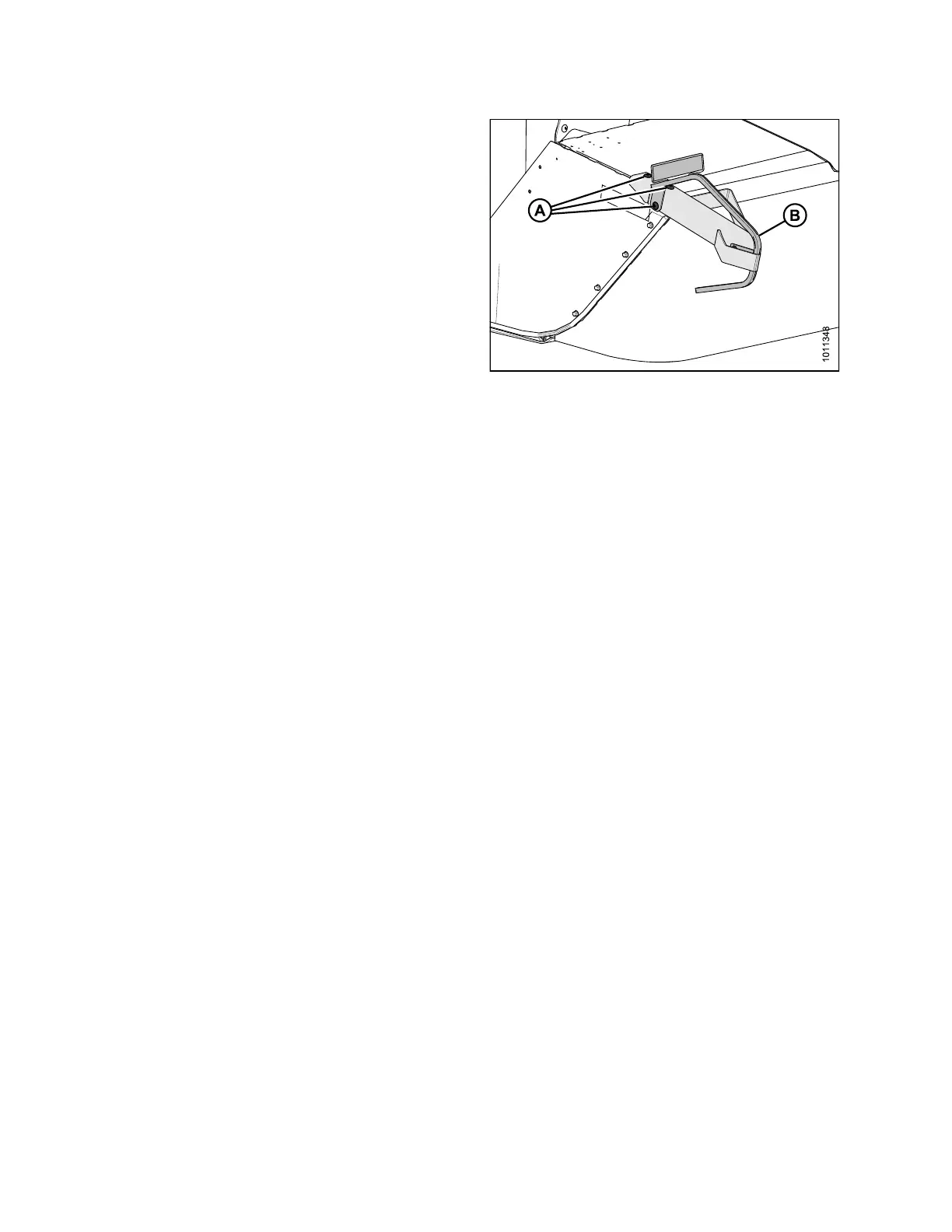

Figure 3.124: Deflector and Hardware
147910 100 Revision A
