PRODUCT OVERVIEW
2.2 Component Identification

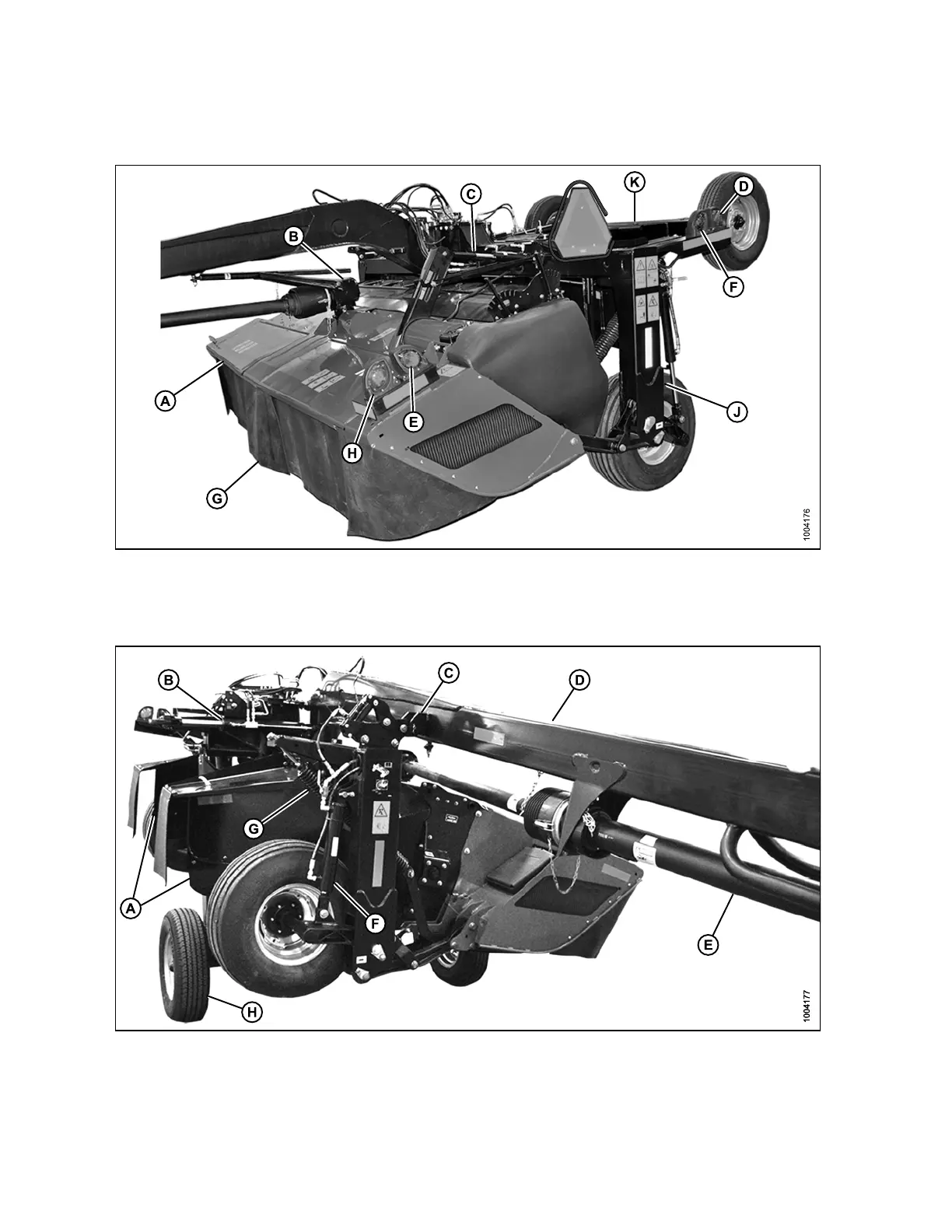

Figure 2.
1: Mower with Finger Conditioner
A - Cutterbar Door B - Rear Swivel Gearbox C - Center-Li nk D - Amber Hazard/Turn Signal Light
E - Red Tail/Brake Light F - Red Tail/Brake Light G - Front Curtains H - Amber Hazard/Turn Signal Light
J - C arrier Frame K - Optional Road Friendly Transport
™
System
Figure 2.2: Mower with Finger Conditioner
A-S
ide Deflector
B-S
teering Cylinder
C-T
ransport Latch
D - Articulated Power Turn (APT) H itch
E - Driveline
F - Lift Cylinder
G-Fl
oat Spring
H-Op
tional Road Friendly Transport
™
Cylinder
147910 25 Revision A
