MAINTENANCE AND SERVICING
4.8 Driveshields
4.8.1 Removing Driveshields
CAUTION
Do NOT operate the machine without the driveshields in place and secured.
NOTE:
Images shown are for left side driveshield—right side
driveshield is similar.

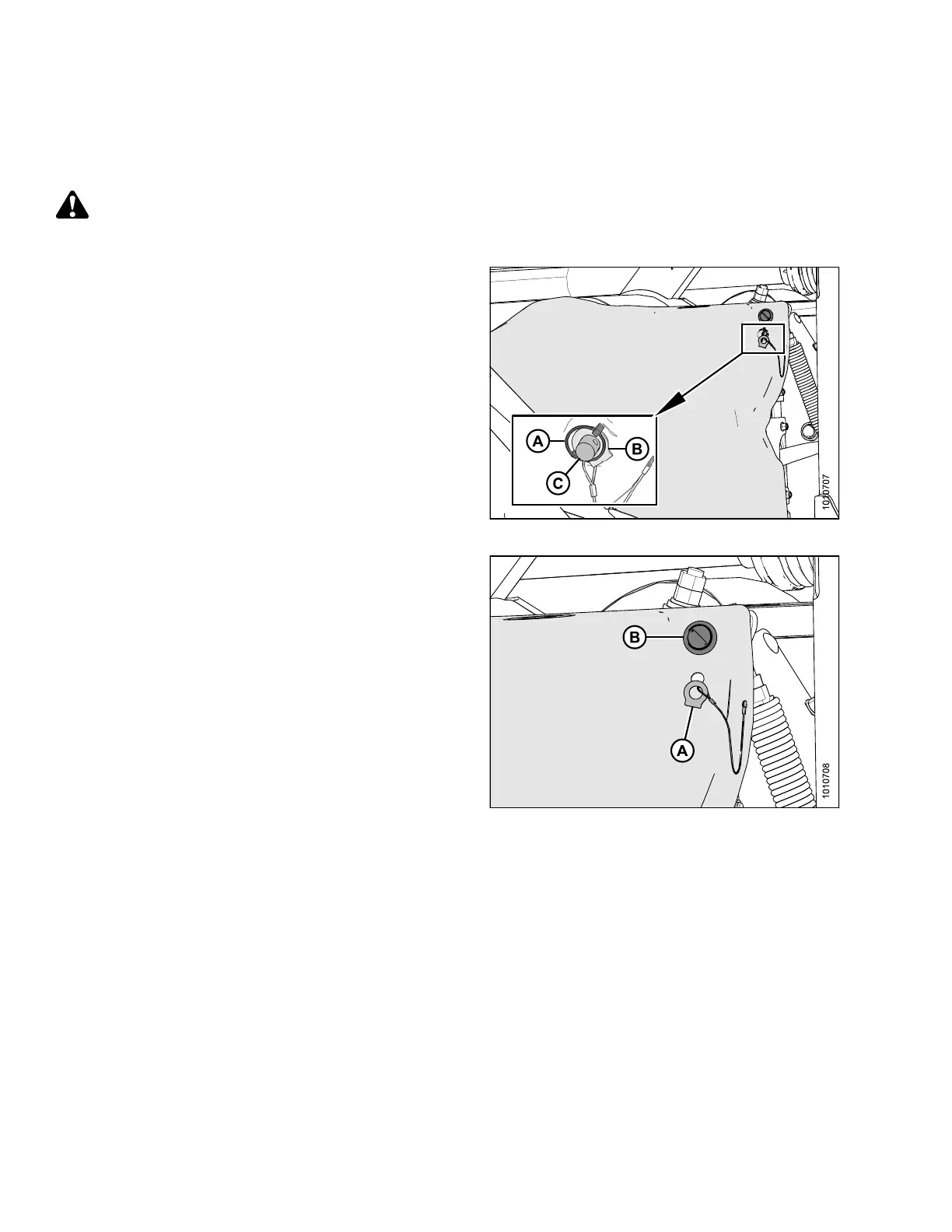

1. Remove lynch pin (A) and tool (B) from pin (C).
Figure 4.240: Tool to Unlock Driveshield
2. Insert flat end of tool (A) into latch (B) and turn it
counterclockwise to unlock.
Figure 4.241: Tool to Unlock Driveshield
and Latch
