MAINTENANCE AND SERVICING

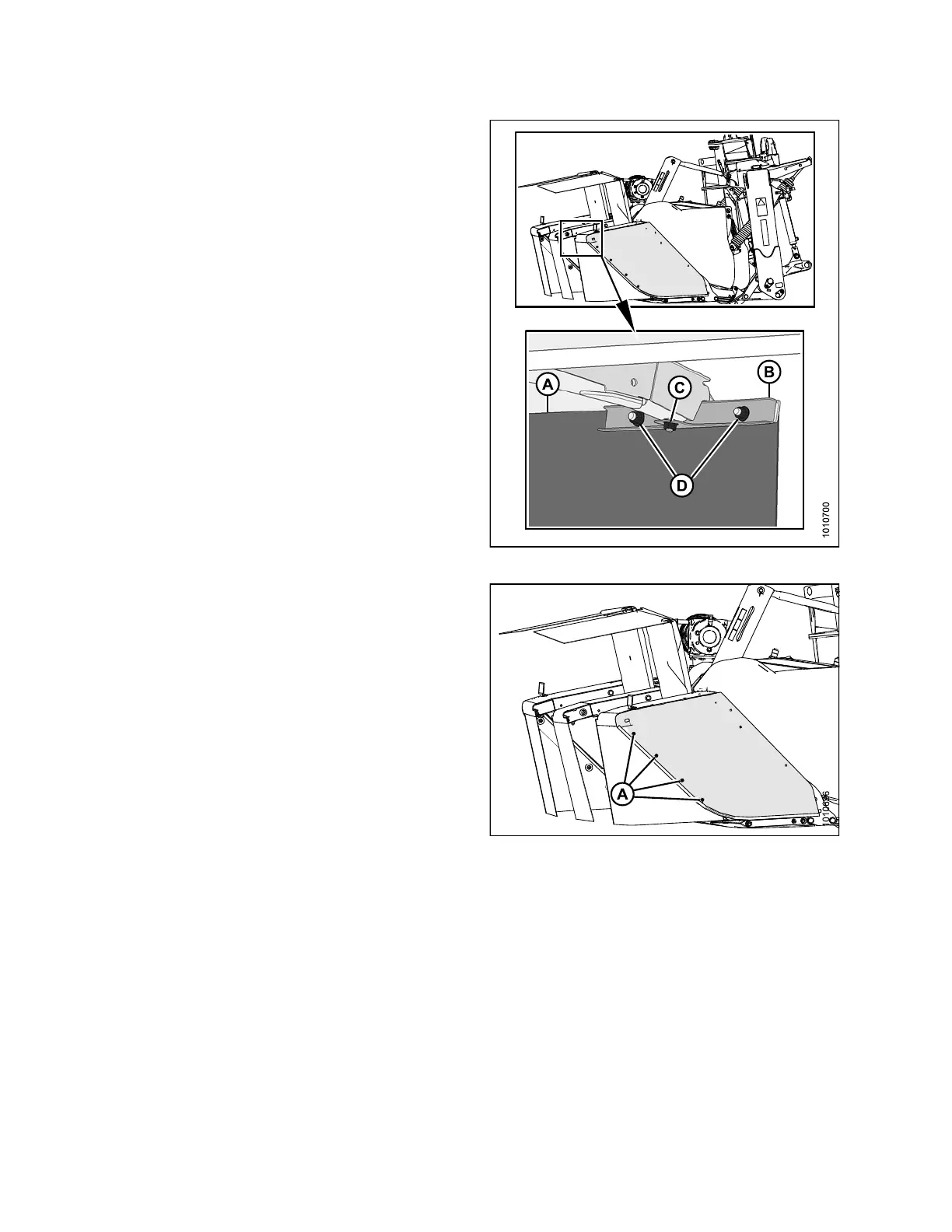

2. Install curtain (A) into bracket (B).
3. Install two nuts (D) and tighten.
4. Slide bracket (B) into position, and install the square
neck carriage head bolt and flange nut (C).
5. Torque flange nut (C) to 30 ft·lbf (40 N·m).
Figure 4.
81: Outboard Curtain
6. Install four c ap screws (A), nuts, and large washers to
secure outboard curtain to endsheet.
Figur
e 4.82: Left Side Endsheet
147910 158 Revision A
