MAINTENANCE AND SERVICING

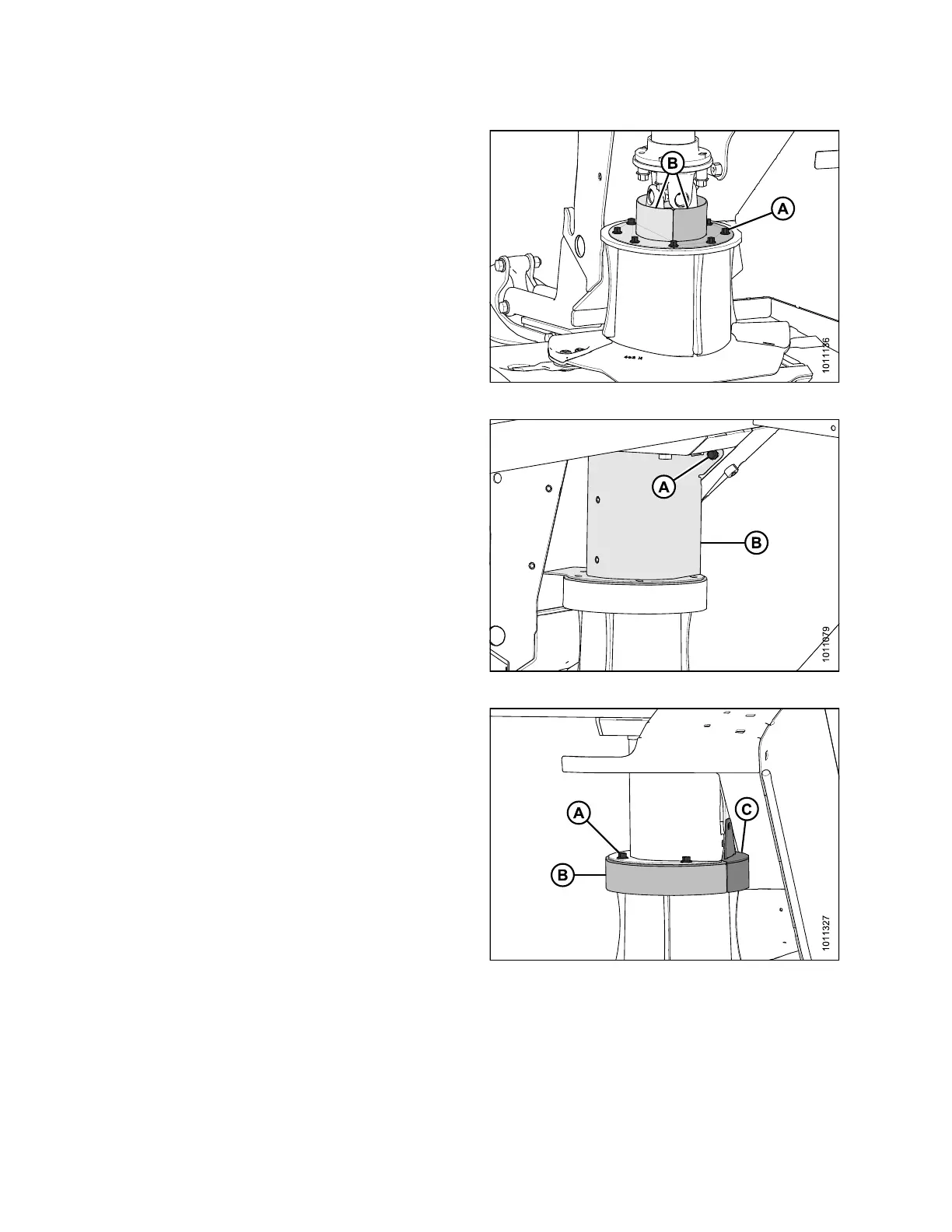

7. Position two d
rum shields (B) as shown, and secure
with eight M8 h
ex flange head bolts (A).
Figure 4.112: Drum Shields
8. Position v
ertical shield (B) as shown, and install M10
hex flange h
ead bolt (A).
Figure 4.113: Vertical Shield
9. Positi
on top plate (B) and drum top (C) onto drum as
shown,
and secure with four M10 hex flange head
bolts
(A).
Figure 4.114: Top Plate and Drum Top
