MAINTENANCE AN D SERVICING
12. Position metal plate (B) on center support.
13. Apply Loctite
®
243 and secure metal plate (B) using
two nuts (A) while ensuring loop (C) on metal plate is
positioned on lower side as shown.
14. Torque nuts (A) to 15 ft·lbf (20 N·m).

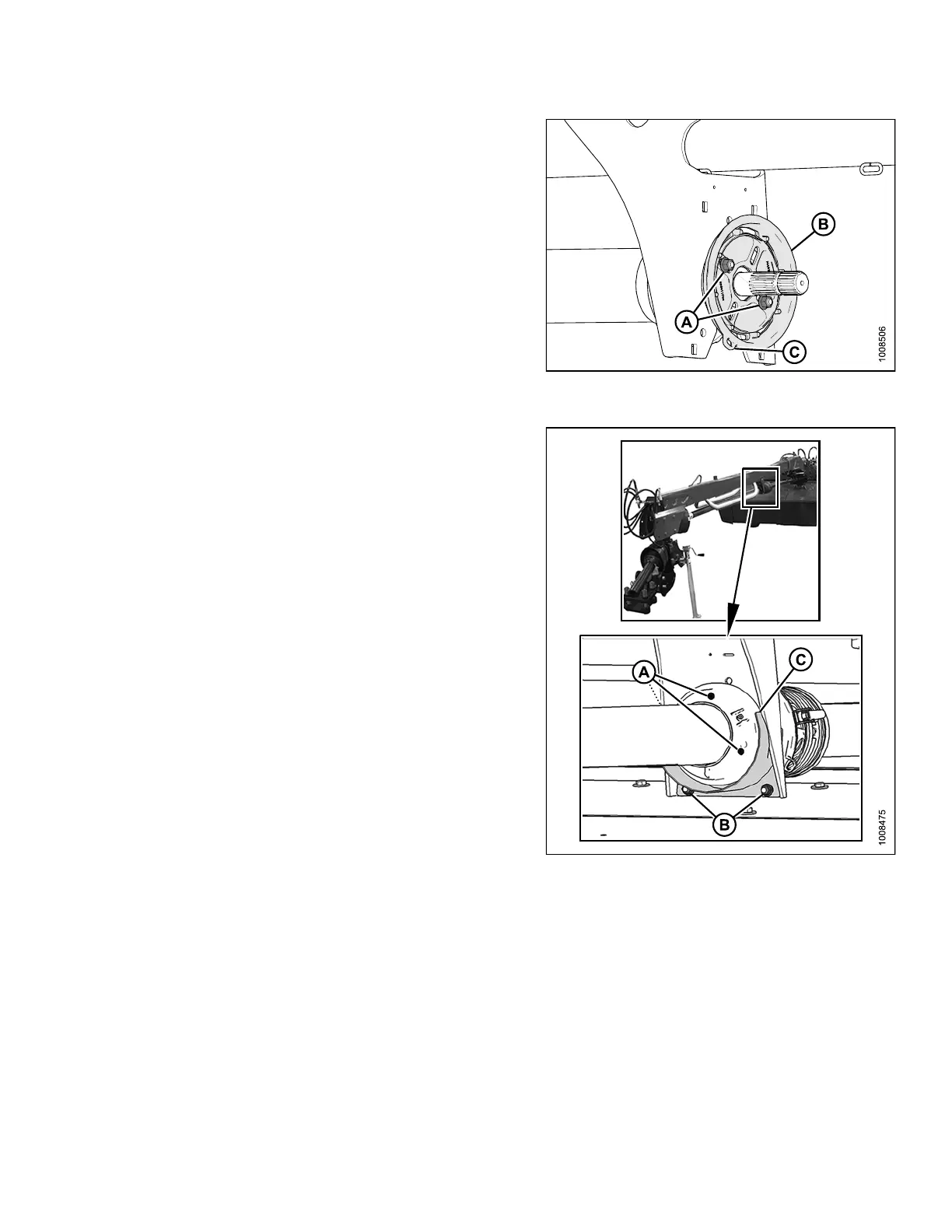

Figure 4.165 : M etal Pl ate Attached to
Center Support
15. Position driveshield cover on center support and
secure with three screws (A).
16. Install metal shield (B) with two bolts.
NOTE:
There are two hitch drivelines for installation on
16-foot mower conditioners.
Figure 4.166: Driveline Cover and Shield
Installed at Center Support
147910 191 Revision A
