SAFETY

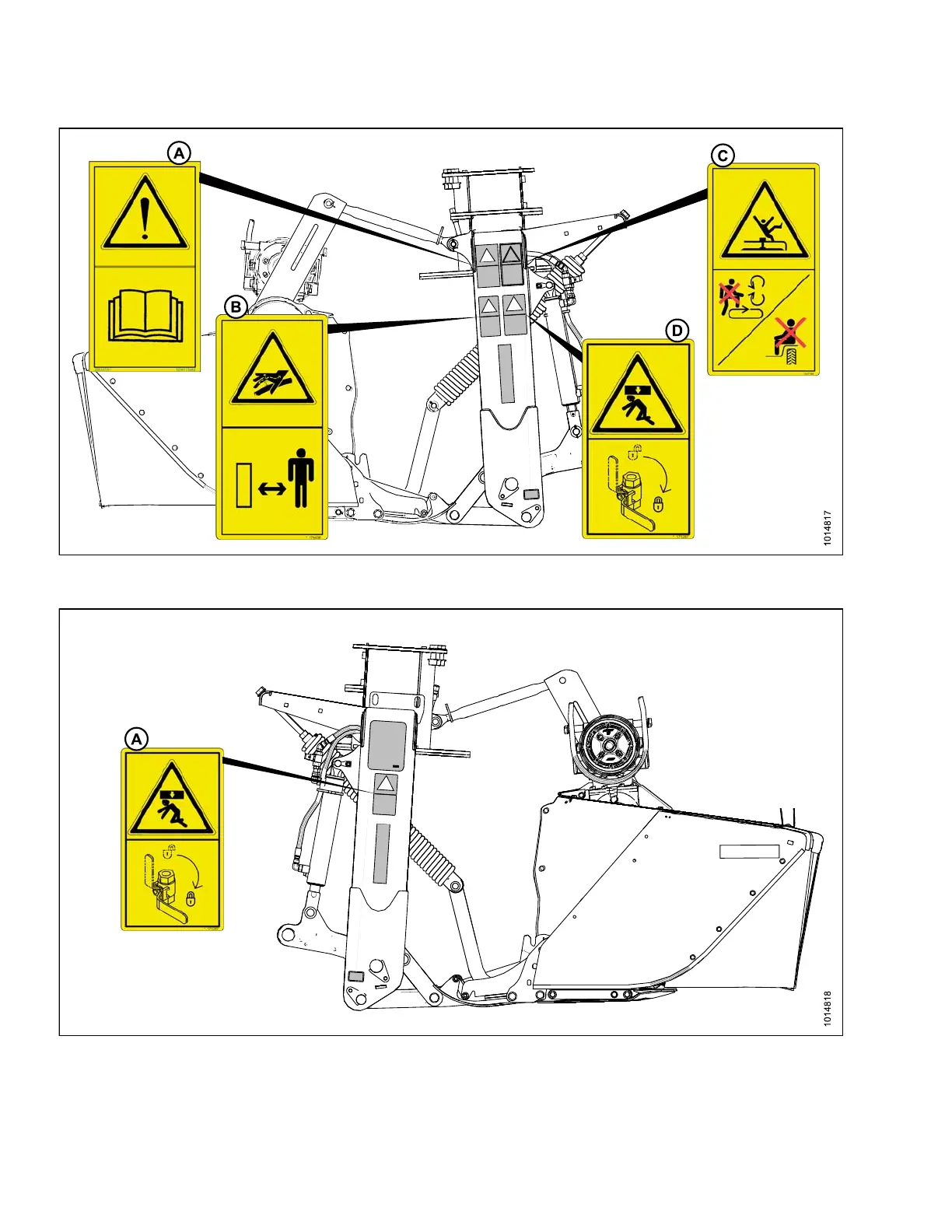

Figure 1.19: Safety Sign Decal Location Left Side

A - MD #113482 B -MD #174436 C -MD #247166 D - MD #171287

Figure 1.20: Safety Sign Decal Locations Right Side

A - MD #171287

147910 10 Revision A
