MAINTENANCE AND SERVICING

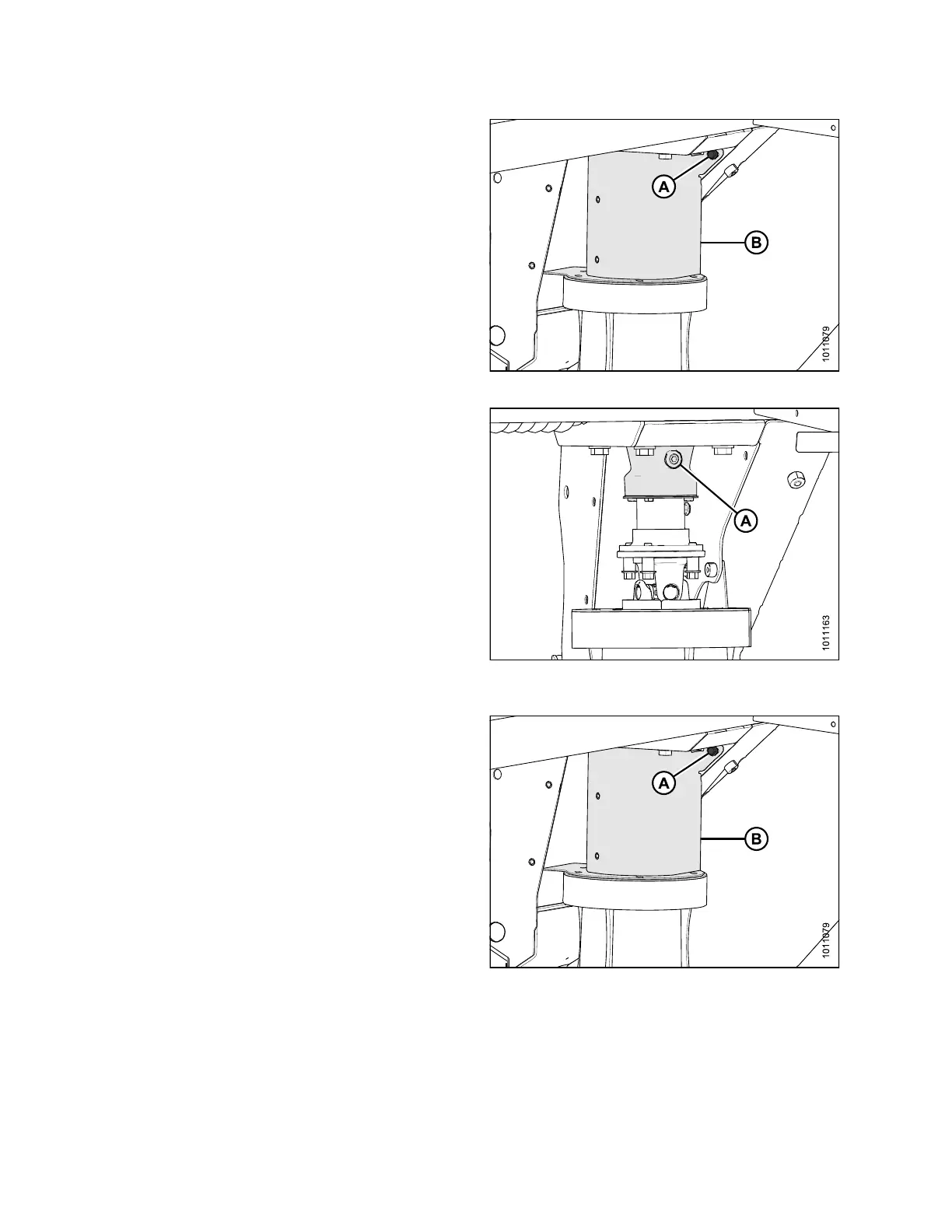

6. Remove M 10 he x flange head bolt (A) and remove
vertical shield (B).
Figure 4.217: Vertical Shield
7. Place a suitably sized container under drain plug (A),
andremoveplugusinga17mmsocket.
8. Allow sufficient time for lubrica nt to dra in, replace d rain
plug (A), and tighten.
9. Properly dispose of oil.
Figure 4.218: Mower Conditioner Drive Gearbox
Drain Plug
10. Position vertical shield (B) as shown, and install an
M10 hex flange head bolt (A).
Figure 4.219: Vertical Shield
147910
21
4
Revision A
